Closes [ZEPPELIN-1505] Add Scio interpreter #1471

ravwojdyla · 2016-09-29T01:25:48Z

What is this PR for?

Closes #ZEPPELIN-1505. Adds Scio interpreter. Scio is a Scala DSL on top of Dataflow/Beam.

What type of PR is it?

Improvement - ZEPPELIN-1505

Todos

- test integration with zeppelin context (zeppelin context is too tightly coupled withs spark)
- what to do about code completion?
- add more tests?
- add helpers to display data
- add doc in docs/interpreter/scio

What is the Jira issue?

https://issues.apache.org/jira/browse/ZEPPELIN-1505

How should this be tested?

mvn -pl scio,zeppelin-display,zeppelin-interpreter -Dtest='org.apache.zeppelin.scio.*' -DfailIfNoTests=false test

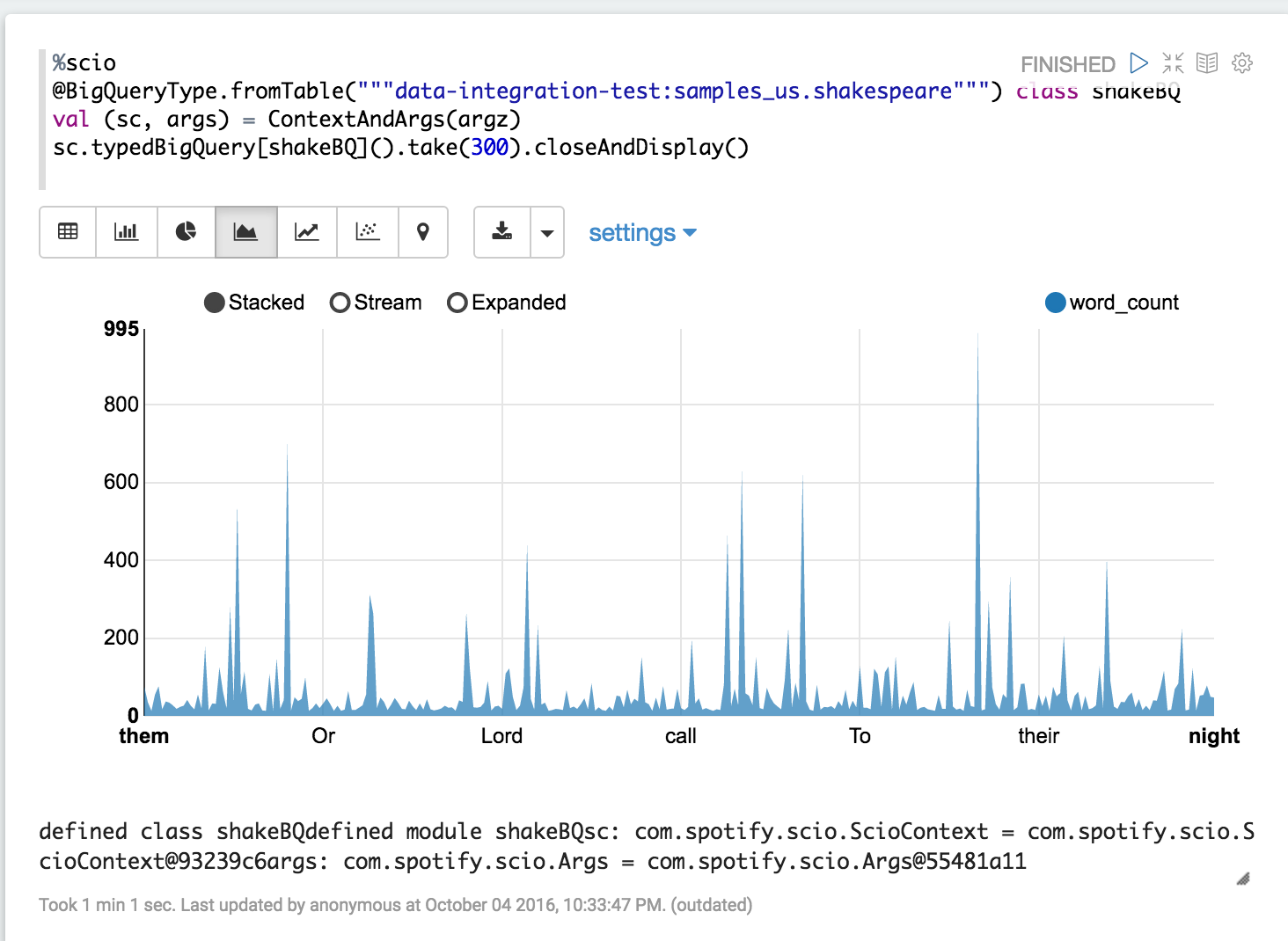

Screenshots

Questions:

Does the licenses files need update? no yes
Is there breaking changes for older versions? no
Does this needs documentation? yes (included in the PR)

zjffdu · 2016-09-29T01:33:26Z

scio/src/main/java/org/apache/zeppelin/scio/LogOutputStream.java

+ * LogOutputStream of apache commons exec has one issue that method flush doesn't throw IOException,
+ * so that SparkOutputStream can not extend it correctly.
+ */
+public abstract class LogOutputStream extends OutputStream {


Seems you are doing the same thing as me in (https://github.com/apache/zeppelin/blob/master/spark/src/main/java/org/apache/zeppelin/spark/LogOutputStream.java). Maybe we can put it in module interpreter so that every interpreter implementation can use it. But could do it in a follow up ticket.

zjffdu · 2016-09-29T01:36:13Z

scio/src/test/java/org/apache/zeppelin/scio/ScioInterpreterTest.java

+    assertEquals(InterpreterResult.Code.SUCCESS,
+        repl.interpret("sc.parallelize(1 to 10).closeAndCollect().toList", context).code());
+  }
+}


I don't know much about scio, but the test seems not sufficient, as least you miss one case of InterpreterResult.Code.ERROR

Fixed. Added test for ERROR. Plus will add more as part of the PR.

It would be better to add more scenarios:

throw exception

multiple line code

Fixed, added:

multiline

throw exception

zjffdu · 2016-09-29T01:36:46Z

scio/src/main/scala/org/apache/zeppelin/scio/ScioInterpreter.scala

+  override def getProgress(context: InterpreterContext): Int = {
+    // not implemented
+    42
+  }


There is no notion of overall progress in scio/beam, but would prefer it to be different than 0 just to see the different between execution vs interpreter startup. Is this fine?

The convention is 0 if progress is not implemented IIRC. If the execution is started, the state would transite from PENDING to RUNNING

zjffdu · 2016-09-29T01:37:28Z

scio/src/main/resources/interpreter-setting.json

+      "args": {
+        "envName": null,
+        "propertyName": null,
+        "defaultValue": "--runner=InProcessPipelineRunner",


propertyName is null ?

Yep - same as in Spark interpreter - what would you recommend?

I have now changed it to fully named property.

AhyoungRyu · 2016-09-29T01:43:24Z

conf/interpreter-list

 postgresql      org.apache.zeppelin:zeppelin-postgresql:0.6.1           Postgresql interpreter
 python          org.apache.zeppelin:zeppelin-python:0.6.1               Python interpreter
 shell           org.apache.zeppelin:zeppelin-shell:0.6.1                Shell command
+scio            org.apache.zeppelin:zeppelin-scio:0.6.1                 Scio interpreter


@ravwojdyla can we keep maintaining alphabetic order in here? need to change the position of scio with shell.

AhyoungRyu · 2016-09-29T01:43:28Z

scio/README.md

+Scio interpreter for Apache Zeppelin
+====================================
+
+## Raison d'être:


You mean Purpose? French word is awesome 👍 , but it would be better to change to English for everyone :)

I'm happy to change, that said Raison d'être is commonly used in English. What do you think?

didn't know that. Good to Know :D

AhyoungRyu · 2016-09-29T01:49:51Z

scio/src/test/java/org/apache/zeppelin/scio/ScioInterpreterTest.java

+      repl.open();
+    }
+
+    context = new InterpreterContext("note", "id", "title", "text",


@ravwojdyla Zeppelin's java code block indentation is "2" space :)

This file seems to be indented with 2 spaces. Which part exactly is the problem?

@ravwojdyla Ah that's my bad. It's just a wrapping. Please ignore my comment for this :)

AhyoungRyu · 2016-09-29T02:04:07Z

@ravwojdyla Thanks for your contribution and welcome!
I assume this PR is not finished but Work In Process since there are some unchecked TODOs. So how about changing the title of this PR from Closes ZEPPELIN-1505: Add Scio interpreter to [WIP][ZEPPELIN-1505] Add Scio interpreter or sth? It would be more helpful to anyone who want to understand the purpose of this PR at a glance and start review :)

ravwojdyla · 2016-09-29T03:18:22Z

@AhyoungRyu @zjffdu thanks for prompt review. I have some questions in the comments, plus fixes coming in. I have also changed the topic of the PR.

ravwojdyla · 2016-09-30T02:06:28Z

@AhyoungRyu @zjffdu could you please review when you have time. all the todos are ✔️

zjffdu · 2016-09-30T02:58:10Z

scio/src/test/java/org/apache/zeppelin/scio/ScioInterpreterTest.java

+  public void testBasicSyntaxError() {
+    assertEquals(InterpreterResult.Code.ERROR,
+        repl.interpret("val a:Int = 'ds'", context).code());
+  }


It would be nice to verify the message as well so that user can see the right error message in frontend.

zjffdu · 2016-09-30T05:11:40Z

scio/src/main/scala/org/apache/zeppelin/scio/package.scala

+        val content = it.take(maxResults)
+                        .map(r => fieldNames.map(r.get).mkString(tab))
+                        .mkString(newline)
+        println(s"$table $header$newline$firstStr$newline$content")


What is the purpose of println ? Is it for logging or display ? If it is for display, it is weird for me to use println, and does it support table format of zeppelin ?

This is for the display system and the %table format specifically.

ravwojdyla · 2016-10-01T03:09:44Z

@AhyoungRyu @zjffdu are there any more comment, how do you want to proceed? the error on travis does not seems to be related?

ravwojdyla · 2016-10-04T20:49:19Z

ping @AhyoungRyu @zjffdu

jongyoul · 2016-10-05T03:05:49Z

zeppelin-zengine/pom.xml

      <groupId>org.apache.commons</groupId>
      <artifactId>commons-vfs2</artifactId>
      <version>2.0</version>
+      <exclusions>


Is this related to this PR?

It was an issue that came up while dev - fixed via 45decf5

If this is not related to this PR directly, Can you revert it and make another minor PR instead? I think it would be better to track the changes :-)

jongyoul · 2016-10-05T03:06:02Z

zeppelin-zengine/pom.xml

           <groupId>org.apache.httpcomponents</groupId>
           <artifactId>httpclient</artifactId>
         </exclusion>
+         <exclusion>


Is this related to this PR?

It was an issue that came up while dev - fixed via 45decf5

AhyoungRyu · 2016-10-05T02:42:17Z

docs/interpreter/scio.md

+
+Scio interpreter comes with display helpers to ease working with Zeppelin notebooks. Simply use `closeAndDisplay()` on `SCollection` to close context and display the results. The number of results is limited by `zeppelin.scio.maxResult` (by default 1000).
+
+Supported `SCollection` types:


@ravwojdyla could you add a blank newline after this line? or it'll be rendered like this

To support Dataflow service execution, which requires REPL state dump in jar, we add custom ContextAndArgs.

Flink dependency makes it impossible to compile scio for scala 2.11 given that there are not 2.11 artifacts for flink runner available yet.

Leemoonsoo · 2016-11-13T16:31:16Z

Looks great to me.
CI failure is unrelated (known flaky test https://issues.apache.org/jira/browse/ZEPPELIN-1623)

Merge to master if no further comments.

### What is this PR for? Closes #ZEPPELIN-1505. Adds Scio interpreter. Scio is a Scala DSL on top of Dataflow/Beam. ### What type of PR is it? Improvement - ZEPPELIN-1505 ### Todos - [x] - test integration with zeppelin context (zeppelin context is too tightly coupled withs spark) - [x] - what to do about code completion? - [x] - add more tests? - [x] - add helpers to display data - [x] - add doc in `docs/interpreter/scio` ### What is the Jira issue? https://issues.apache.org/jira/browse/ZEPPELIN-1505 ### How should this be tested? ``` mvn -pl scio,zeppelin-display,zeppelin-interpreter -Dtest='org.apache.zeppelin.scio.*' -DfailIfNoTests=false test ``` ### Screenshots ![GitHub Logo](http://i.imgur.com/w6Cp5kp.png) ### Questions: - Does the licenses files need update? ~~no~~ yes - Is there breaking changes for older versions? no - Does this needs documentation? yes (included in the PR) Author: Rafal Wojdyla <rav@spotify.com> Closes apache#1471 from ravwojdyla/scio and squashes the following commits: d6fbc4e [Rafal Wojdyla] Add runner doc links 7e6fdec [Rafal Wojdyla] Fix indentation d8de7c8 [Rafal Wojdyla] Remove optional flink deps from Beam 508705f [Rafal Wojdyla] Remove duplicates 49cf0eb [Rafal Wojdyla] Add scio to beam group cd79fc8 [Rafal Wojdyla] Add .bigquery cache to gitignore b961791 [Rafal Wojdyla] Check the message content 1e30f76 [Rafal Wojdyla] Simplify SCollection implicits 3c519f1 [Rafal Wojdyla] Fix doc style e9579d8 [Rafal Wojdyla] Clarify Context sharing + add docs about display helpers 327273e [Rafal Wojdyla] Add Zeppelin custom ContextAndArgs 0920fdd [Rafal Wojdyla] Remove obsolete deps 8f25f71 [Rafal Wojdyla] Upgrade scio to 0.2.4 3275185 [Rafal Wojdyla] Add license bd4df5e [Rafal Wojdyla] Fix documentation style dcbb197 [Rafal Wojdyla] Add documentation link e635674 [Rafal Wojdyla] Add tests for DisplayHelpers c0f8ccf [Rafal Wojdyla] Fix style and number of records for take 9dcc8ce [Rafal Wojdyla] Add display helpers for Tap[T] and Future[Tap[T]] 4014c81 [Rafal Wojdyla] Parse params generic params 0305a3c [Rafal Wojdyla] Style fix a92494b [Rafal Wojdyla] Style + use `split` to support both scala 2.{10,11} b884b72 [Rafal Wojdyla] Fix tests - add exception and check messages 99a7daa [Rafal Wojdyla] Progress should be 0 7b54e49 [Rafal Wojdyla] No need to override delegation for completion 12f0096 [Rafal Wojdyla] Clean up tests 93233a8 [Rafal Wojdyla] Rename argz param, fix style 0a3b49a [Rafal Wojdyla] Add Scio doc 61850d7 [Rafal Wojdyla] Add TableRow display helper + style be252f8 [Rafal Wojdyla] Add avro display 89a2811 [Rafal Wojdyla] Add limit of display 9a21aa0 [Rafal Wojdyla] Add display helpers 6ff4e95 [Rafal Wojdyla] Inject argz to the Scio interpreter 570cfaa [Rafal Wojdyla] Add Scio interpreter tests 38abaf9 [Rafal Wojdyla] Add Scio interpreter 7b596ea [Rafal Wojdyla] Generalize SparkOutputStream

ravwojdyla force-pushed the scio branch from c8463c6 to 93ac7a5 Compare September 29, 2016 01:28

zjffdu reviewed Sep 29, 2016

View reviewed changes

AhyoungRyu reviewed Sep 29, 2016

View reviewed changes

ravwojdyla changed the title ~~Closes ZEPPELIN-1505: Add Scio interpreter~~ [WIP][ZEPPELIN-1505] Add Scio interpreter Sep 29, 2016

ravwojdyla force-pushed the scio branch 4 times, most recently from 8457886 to 931f9b0 Compare September 30, 2016 01:19

ravwojdyla changed the title ~~[WIP][ZEPPELIN-1505] Add Scio interpreter~~ Closes [ZEPPELIN-1505] Add Scio interpreter Sep 30, 2016

ravwojdyla mentioned this pull request Sep 30, 2016

Add Scio support in Apache Zeppelin spotify/scio#273

Closed

zjffdu reviewed Sep 30, 2016

View reviewed changes

ravwojdyla force-pushed the scio branch 4 times, most recently from 9b02792 to 6241153 Compare October 1, 2016 01:42

ravwojdyla force-pushed the scio branch 3 times, most recently from 7886159 to 035738e Compare October 4, 2016 19:33

jongyoul reviewed Oct 5, 2016

View reviewed changes

AhyoungRyu reviewed Oct 5, 2016

View reviewed changes

Rafal Wojdyla added 20 commits November 11, 2016 22:16

Style fix

0305a3c

Parse params generic params

4014c81

Add display helpers for Tap[T] and Future[Tap[T]]

9dcc8ce

Fix style and number of records for take

c0f8ccf

Add tests for DisplayHelpers

e635674

Add documentation link

dcbb197

Fix documentation style

bd4df5e

Add license

3275185

Upgrade scio to 0.2.4

8f25f71

Remove obsolete deps

0920fdd

Add Zeppelin custom ContextAndArgs

327273e

To support Dataflow service execution, which requires REPL state dump in jar, we add custom ContextAndArgs.

Clarify Context sharing + add docs about display helpers

e9579d8

Fix doc style

3c519f1

Simplify SCollection implicits

1e30f76

Check the message content

b961791

Add .bigquery cache to gitignore

cd79fc8

Add scio to beam group

49cf0eb

Remove duplicates

508705f

Remove optional flink deps from Beam

d8de7c8

Flink dependency makes it impossible to compile scio for scala 2.11 given that there are not 2.11 artifacts for flink runner available yet.

Fix indentation

7e6fdec

ravwojdyla force-pushed the scio branch 4 times, most recently from 020a653 to acdf00a Compare November 12, 2016 16:29

Add runner doc links

d6fbc4e

ravwojdyla force-pushed the scio branch from acdf00a to d6fbc4e Compare November 13, 2016 02:53

asfgit closed this in f127237 Nov 14, 2016

ravwojdyla deleted the scio branch November 14, 2016 19:02
