fix(extra-filters): add logic for identifying applied extra filters #11325

villebro · 2020-10-19T07:34:41Z

SUMMARY

Adds support for applied_filters and rejected_filters to chart data endpoint + adds support for temporal extras to both viz.py and chart data endpoint.

Short summary of changes:

In the legacy data json_explore endpoint, temporal extras (__time_range etc) are applied to form_data in merge_extras (see: https://github.com/apache/incubator-superset/blob/735123d1f5513d366955db1865faf6b064c9bd4a/superset/utils/core.py#L922-L953 ), information of which temporal filters have been overridden is lost. To get around this, we add the applied temporal extras in a dict called applied_time_extras that we can later reference to determine which of them were applied and which were not.
since superset-ui/core merges temporal extras to the query object prior to sending the request, essentially performing the above operation (see: https://github.com/apache-superset/superset-ui/blob/master/packages/superset-ui-core/src/query/extractExtras.ts) , we need to pass along applied_time_extras in the request.

Please note: needs to upgrade to new version of superset-ui/core introduced here to function properly with v1 API plugins: apache-superset/superset-ui#809 .

SCREENSHOTS

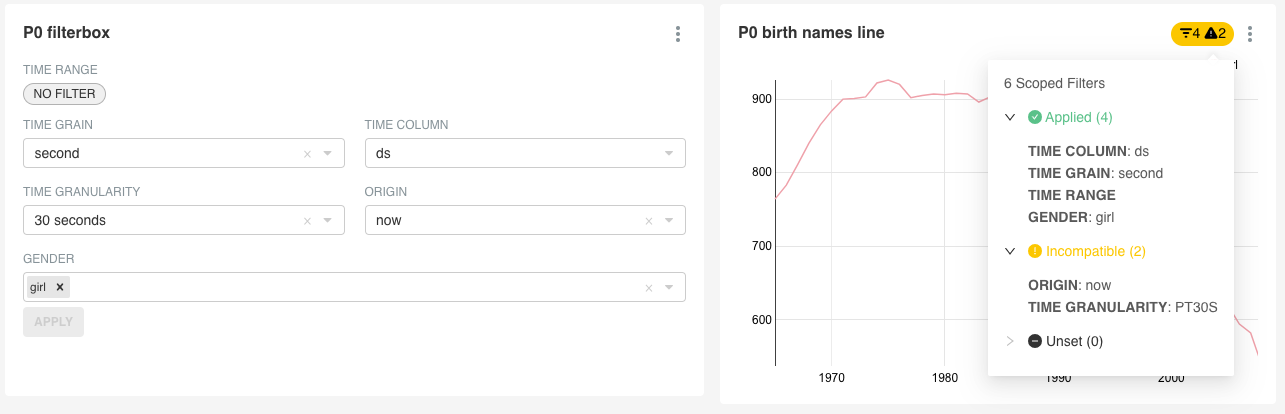

In the below screenshot we can see that all temporal SQL filters are showing up as applied, while the druid ones aren't, as they aren't applicable to SQL datasources:

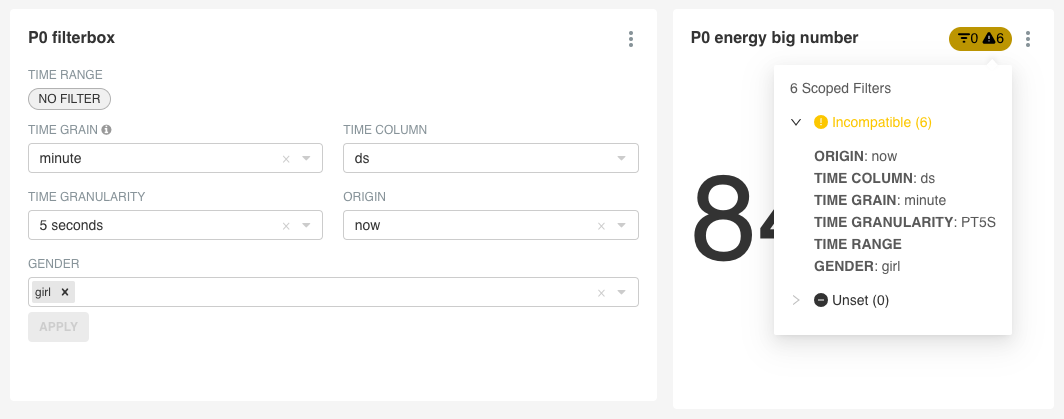

In the below screenshot we can see that all filters are flagged as incompatible, as the datasource doesn't have the gender column, nor any temporal SQL or Druid columns:

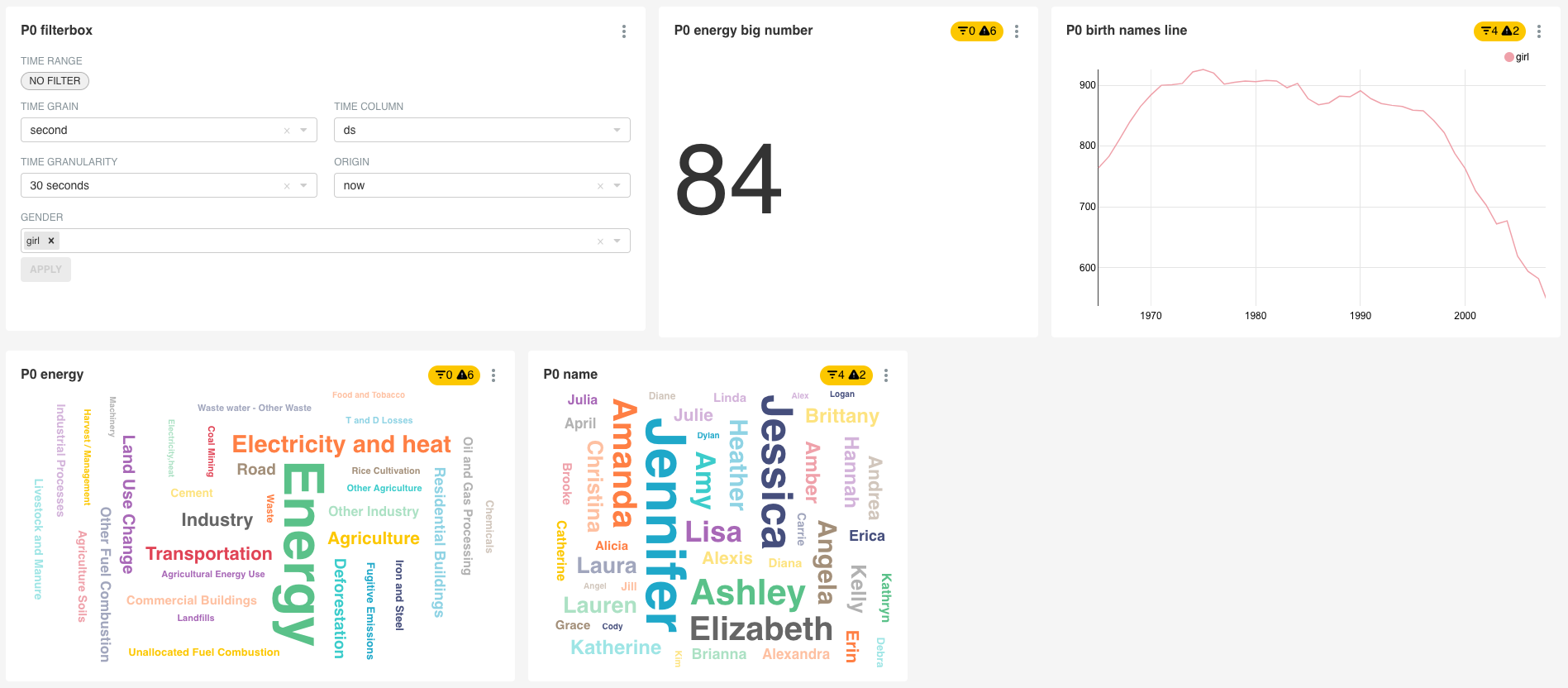

In this screenshot, we have both legacy (top row) and v1 (bottom row) viz plugins on the same dashboard. Notice that the filters apply similar to the legacy plugins:

TEST PLAN

CI with updated old tests + new E2E test

ADDITIONAL INFORMATION

* button translations missing * blank space before text

* feat: update time_compare description and choices * Update sections.jsx

villebro · 2020-10-19T07:46:24Z

superset/charts/schemas.py

+    applied_time_extras = fields.Dict(
+        description="A mapping of temporal extras that have been applied to the query",
+        required=False,
+        example={"__time_range": "1 year ago : now"},
+    )


I tried creating a dedicated schema with named properties (__time_range etc) and then adding a nested reference here, but that didn't work, probably due to the double underscores. Leaving these as a fields.Dict for now to get around the double underscore problem.

villebro · 2020-10-19T07:47:37Z

superset/charts/schemas.py

+    druid_time_origin = fields.String(
+        description="Starting point for time grain counting on legacy Druid "
+        "datasources. Used to change e.g. Monday/Sunday first-day-of-week. "
+        "This field is deprecated and should be passed to `extras` "
+        "as `druid_time_origin`.",
+        allow_none=True,
+    )


Turns out this was missing from the chart data schema. Also added to deprecated field mapping in query_object.py.

codecov-io · 2020-10-19T08:19:50Z

Codecov Report

Merging #11325 into feature/filter-p0 will increase coverage by 0.04%.
The diff coverage is 80.70%.

@@                  Coverage Diff                  @@
##           feature/filter-p0   #11325      +/-   ##
=====================================================
+ Coverage              60.78%   60.83%   +0.04%
=====================================================
  Files                    393      393
  Lines                  24848    24900      +52
=====================================================
+ Hits                   15105    15147      +42
- Misses                  9743     9753      +10

Flag	Coverage Δ
#python	`60.83% <80.70%> (+0.04%)`	⬆️

Flags with carried forward coverage won't be shown. Click here to find out more.

Impacted Files	Coverage Δ
superset/views/dashboard/mixin.py	`95.00% <ø> (ø)`
superset/utils/core.py	`88.67% <73.17%> (-0.97%)`	⬇️
superset/charts/schemas.py	`100.00% <100.00%> (ø)`
superset/common/query_context.py	`87.80% <100.00%> (+0.46%)`	⬆️
superset/common/query_object.py	`90.90% <100.00%> (+0.16%)`	⬆️
superset/models/dashboard.py	`80.63% <100.00%> (ø)`
superset/viz.py	`57.74% <100.00%> (+0.04%)`	⬆️
superset/connectors/base/models.py	`89.78% <0.00%> (+0.35%)`	⬆️

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update a123b24...1d63d1c. Read the comment docs.

villebro · 2020-10-19T09:44:02Z

superset-frontend/spec/javascripts/explore/components/QueryAndSaveBtns_spec.jsx

I'm unsure why GH is showing this line (and other similar ones) as changed, as I haven't touched them (the branch is based on apache:feature/filter-p0 and is up-to-date)

suddjian · 2020-10-19T16:37:36Z

superset/charts/schemas.py

    data = fields.List(fields.Dict(), description="A list with results")
+    applied_filters = fields.List(
+        fields.Dict(), description="A list with applied filters"
+    )


I forgot to add this, thank you!

suddjian · 2020-10-19T16:40:31Z

superset/models/dashboard.py


    def __repr__(self) -> str:
-        return f"Dashboard<{self.slug or self.id}>"
+        return f"Dashboard<{self.id or self.slug}>"


shouldn't this be the other way round? Is this one of those lines you didn't touch?

I guess if it's for the __repr__ function it makes more sense to use the id

I haven't changed these lines, I think this is GH acting up showing some changes that have come in after the branch was cut.

Huh. Maybe you merged master or something

suddjian

Thanks Ville!

* Initial commit of new filters badge. * refactor applied/rejected filters code * finished filter indicators * filter badge tested * unnecessary imports * formatting and types * fixes * license * code quality tweaks * state management for showing focused filter scope * clean up filter key extraction code * remove unnecessary styles * temp css to demonstrate highlighting * fix focused filter logic * no more color badges * new toys for highlighting dash components (#11144) * tweak style for the filter chart when filter is focused * style: Filters p0 css2 (#11151) * nixing background tweak * src paths * another quick theme color * src paths, adjusting pill icon color, changing icons, showing applied/busted counts * linting stuff * fixing and tweaking tests * show filter indicator when filters are not active * chart title bar cleanup * open the right panel when popover opens * unused import * fix EditableTitle tests * margin on dashboard header * show the chart dropdown menu * fix blur filter breaking dropdowns * style tweak - no pointer events when irrelevant charts are blurred * fix box shadow on filter highlight * it's an array * attempt fixing e2e * style: filters p0 icon churn (#11215) * new filters icon * icon styling * bigger icons in list views * better sizing of table actions and favStars * more icon sizing... * fixing more button size jankiness * linting * Filters performance (#11255) * fixing time filter "ok" button * making unset filter menu collapsible * sort alphabetically * fix highlighting when removing items * try a flex layout (for browser render perf) * more specific transitioning * temp: comment out some code as a test * temp: comment out more code * temp: remove possibly expensive computations from ChartHolder * Revert "temp: comment out some code as a test" This reverts commit 309b880. * Revert "temp: comment out more code" This reverts commit 64c88b2. * Revert "temp: remove possibly expensive computations from ChartHolder" This reverts commit 37ce021. * experiment: upgrade react-select to v3 * Revert "experiment: upgrade react-select to v3" This reverts commit c3972ba. * fix the damn problem * remove code used for testing purposes * awful hack to avoid adding a class to a container * approaching infinity... and not beyond! * fix ref forwarding * add theme to tests as necessary * fix(extra-filters): add logic for identifying applied extra filters (#11325) * fix: use dashboard id for stable cache key (#11293) * fix: button translations missing (#11187) * button translations missing * blank space before text * feat: update time_compare description and choices (#11294) * feat: update time_compare description and choices * Update sections.jsx * fix(extra-filters): add logic for identifying applied extra filters * lint Co-authored-by: Jesse Yang <[email protected]> Co-authored-by: rubenSastre <[email protected]> Co-authored-by: Erik Ritter <[email protected]> * address design feedback * slight tweak to panel logic, keep panels open that user has opened * rearrange code to be more graceful * fix: bump superset-ui/core (#11385) * use is_dttm instead of is_temporal * types, names * only show unset filter panel if there are unset filters * fix highlighting the filter control * fix filterbox layout * translations * fix cypress * actually add the test attribute * Update superset-frontend/src/dashboard/components/DashboardBuilder.jsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/DashboardBuilder.jsx Co-authored-by: Evan Rusackas <[email protected]> * formatting * add link comment to hack * Update superset-frontend/src/dashboard/components/gridComponents/ChartHolder.jsx Co-authored-by: Evan Rusackas <[email protected]> * stop importing lodash * Update superset-frontend/src/dashboard/components/gridComponents/ChartHolder.jsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * skip broken test * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * adjust colors of titles * linting * no indicators when chart is loading * support all time fields * fix lock file Co-authored-by: Natalie Ruhe <[email protected]> Co-authored-by: Evan Rusackas <[email protected]> Co-authored-by: Ville Brofeldt <[email protected]> Co-authored-by: Jesse Yang <[email protected]> Co-authored-by: rubenSastre <[email protected]> Co-authored-by: Erik Ritter <[email protected]> Co-authored-by: Ville Brofeldt <[email protected]>

* Initial commit of new filters badge. * refactor applied/rejected filters code * finished filter indicators * filter badge tested * unnecessary imports * formatting and types * fixes * license * code quality tweaks * state management for showing focused filter scope * clean up filter key extraction code * remove unnecessary styles * temp css to demonstrate highlighting * fix focused filter logic * no more color badges * new toys for highlighting dash components (apache#11144) * tweak style for the filter chart when filter is focused * style: Filters p0 css2 (apache#11151) * nixing background tweak * src paths * another quick theme color * src paths, adjusting pill icon color, changing icons, showing applied/busted counts * linting stuff * fixing and tweaking tests * show filter indicator when filters are not active * chart title bar cleanup * open the right panel when popover opens * unused import * fix EditableTitle tests * margin on dashboard header * show the chart dropdown menu * fix blur filter breaking dropdowns * style tweak - no pointer events when irrelevant charts are blurred * fix box shadow on filter highlight * it's an array * attempt fixing e2e * style: filters p0 icon churn (apache#11215) * new filters icon * icon styling * bigger icons in list views * better sizing of table actions and favStars * more icon sizing... * fixing more button size jankiness * linting * Filters performance (apache#11255) * fixing time filter "ok" button * making unset filter menu collapsible * sort alphabetically * fix highlighting when removing items * try a flex layout (for browser render perf) * more specific transitioning * temp: comment out some code as a test * temp: comment out more code * temp: remove possibly expensive computations from ChartHolder * Revert "temp: comment out some code as a test" This reverts commit 309b880. * Revert "temp: comment out more code" This reverts commit 64c88b2. * Revert "temp: remove possibly expensive computations from ChartHolder" This reverts commit 37ce021. * experiment: upgrade react-select to v3 * Revert "experiment: upgrade react-select to v3" This reverts commit c3972ba. * fix the damn problem * remove code used for testing purposes * awful hack to avoid adding a class to a container * approaching infinity... and not beyond! * fix ref forwarding * add theme to tests as necessary * fix(extra-filters): add logic for identifying applied extra filters (apache#11325) * fix: use dashboard id for stable cache key (apache#11293) * fix: button translations missing (apache#11187) * button translations missing * blank space before text * feat: update time_compare description and choices (apache#11294) * feat: update time_compare description and choices * Update sections.jsx * fix(extra-filters): add logic for identifying applied extra filters * lint Co-authored-by: Jesse Yang <[email protected]> Co-authored-by: rubenSastre <[email protected]> Co-authored-by: Erik Ritter <[email protected]> * address design feedback * slight tweak to panel logic, keep panels open that user has opened * rearrange code to be more graceful * fix: bump superset-ui/core (apache#11385) * use is_dttm instead of is_temporal * types, names * only show unset filter panel if there are unset filters * fix highlighting the filter control * fix filterbox layout * translations * fix cypress * actually add the test attribute * Update superset-frontend/src/dashboard/components/DashboardBuilder.jsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/DashboardBuilder.jsx Co-authored-by: Evan Rusackas <[email protected]> * formatting * add link comment to hack * Update superset-frontend/src/dashboard/components/gridComponents/ChartHolder.jsx Co-authored-by: Evan Rusackas <[email protected]> * stop importing lodash * Update superset-frontend/src/dashboard/components/gridComponents/ChartHolder.jsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * skip broken test * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * Update superset-frontend/src/dashboard/components/FiltersBadge/Styles.tsx Co-authored-by: Evan Rusackas <[email protected]> * adjust colors of titles * linting * no indicators when chart is loading * support all time fields * fix lock file Co-authored-by: Natalie Ruhe <[email protected]> Co-authored-by: Evan Rusackas <[email protected]> Co-authored-by: Ville Brofeldt <[email protected]> Co-authored-by: Jesse Yang <[email protected]> Co-authored-by: rubenSastre <[email protected]> Co-authored-by: Erik Ritter <[email protected]> Co-authored-by: Ville Brofeldt <[email protected]>

ktmud and others added 4 commits October 19, 2020 09:07

fix: use dashboard id for stable cache key (apache#11293)

5e66735

fix: button translations missing (apache#11187)

4c011cd

* button translations missing * blank space before text

feat: update time_compare description and choices (apache#11294)

78bd8e3

* feat: update time_compare description and choices * Update sections.jsx

fix(extra-filters): add logic for identifying applied extra filters

1a86007

superset-github-bot bot added the preset-io label Oct 19, 2020

pull-request-size bot added the size/L label Oct 19, 2020

villebro changed the title ~~Villebro/p0 extras~~ [WIP] fix(extra-filters): add logic for identifying applied extra filters Oct 19, 2020

villebro commented Oct 19, 2020

View reviewed changes

villebro changed the title ~~[WIP] fix(extra-filters): add logic for identifying applied extra filters~~ fix(extra-filters): add logic for identifying applied extra filters Oct 19, 2020

lint

1d63d1c

villebro force-pushed the villebro/p0-extras branch from 77b41f6 to 1d63d1c Compare October 19, 2020 10:13

villebro mentioned this pull request Oct 19, 2020

feat(core): add applied_time_extras to QueryObject apache-superset/superset-ui#809

Merged

suddjian reviewed Oct 19, 2020

View reviewed changes

suddjian approved these changes Oct 19, 2020

View reviewed changes

suddjian merged commit 53293e3 into apache:feature/filter-p0 Oct 19, 2020

villebro deleted the villebro/p0-extras branch October 19, 2020 17:03
