[SPARK-31688][WEBUI] Refactor Pagination framework #28512

iRakson · 2020-05-12T18:09:11Z

What changes were proposed in this pull request?

Currently while implementing pagination using the existing pagination framework, a lot of code is being copied as pointed out here.

I introduced some changes in PagedTable which is the main trait for implementing the pagination.

Added function for getting table parameters.
Added a function for table header row. This will help in maintaining consistency across the tables. All the header rows across tables will be consistent now.

Why are the changes needed?

A lot of code is copied every time pagination is implemented for any table.
Code readability is not great as lot of HTML is embedded.
Paginating other tables will be a lot easier now.

Does this PR introduce any user-facing change?

No.

How was this patch tested?

Manually. This is mainly refactoring work, no new functionality introduced. Existing test cases should pass.

iRakson · 2020-05-12T18:11:36Z

cc @srowen @uncleGen @sarutak @HyukjinKwon Kindly review.

sarutak · 2020-05-12T21:13:53Z

ok to test.

SparkQA · 2020-05-12T21:46:08Z

Test build #122565 has finished for PR 28512 at commit 7775dd1.

This patch fails build dependency tests.
This patch merges cleanly.
This patch adds no public classes.

uncleGen · 2020-05-13T02:32:46Z

retest this please.

uncleGen · 2020-05-13T02:39:04Z

core/src/main/scala/org/apache/spark/ui/PagedTable.scala

+  def getTableParameters(request: HttpServletRequest, tableTag: String,
+      defaultSortColumn: String): (String, Boolean, Int) = {


nit: all arguments in one line or each one in separate line.

SparkQA · 2020-05-13T03:03:53Z

Test build #122570 has finished for PR 28512 at commit 7775dd1.

This patch fails build dependency tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2020-05-13T12:13:12Z

Test build #122591 has finished for PR 28512 at commit 89194d3.

This patch fails build dependency tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2020-05-13T12:57:33Z

Test build #122594 has finished for PR 28512 at commit 0f886d6.

This patch fails build dependency tests.
This patch merges cleanly.
This patch adds no public classes.

iRakson · 2020-05-14T05:57:33Z

retest this please

iRakson · 2020-05-16T19:20:23Z

@srowen @sarutak @uncleGen If Jenkins is fine, can we test this ?

srowen · 2020-05-16T19:50:00Z

Jenkins test this please

SparkQA · 2020-05-17T00:19:59Z

Test build #122736 has finished for PR 28512 at commit 0f886d6.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

iRakson · 2020-05-18T16:00:43Z

@srowen @sarutak @uncleGen Can you take a look at this PR.
#28485 and #28439 are pending due to this one.

srowen · 2020-05-18T16:47:24Z

I don't know enough to have a strong opinion, but it looks plausible and I think you know this code well. If it doesn't introduce any behavior change, just a cleanup, I think it's OK.

sarutak · 2020-05-20T08:49:17Z

Now I'm checking and will leave comment.

sarutak

Thanks @iRakson for the refactoring!
It almost LGTM.
I've left some minor comments.

sarutak · 2020-05-20T08:58:19Z

core/src/main/scala/org/apache/spark/ui/jobs/AllJobsPage.scala

  }

  override def headers: Seq[Node] = {
    // Information for each header: title, cssClass, and sortable


Could you update the comment?

sarutak · 2020-05-20T09:01:57Z

core/src/main/scala/org/apache/spark/ui/PagedTable.scala

+   */
+  def isSortColumnValid(
+      headerInfo: Seq[(String, Boolean, Option[String])],
+      sortColumn: String): Any = {


The return type is better to be Unit rather than Any isn't it?

sarutak · 2020-05-20T09:55:34Z

core/src/main/scala/org/apache/spark/ui/jobs/StageTable.scala

    isFairScheduler: Boolean,
    killEnabled: Boolean,
    isFailedStage: Boolean) {
-  val parameterOtherTable = request.getParameterMap().asScala


JavaConverters._ is imported but it may be no longer used after this change.

sarutak · 2020-05-20T09:56:38Z

core/src/main/scala/org/apache/spark/ui/jobs/AllJobsPage.scala

      jobTag: String,
      jobs: Seq[v1.JobData],
      killEnabled: Boolean): Seq[Node] = {
-    val parameterOtherTable = request.getParameterMap().asScala


Same comment as here.

sarutak · 2020-05-20T09:57:52Z

core/src/main/scala/org/apache/spark/ui/jobs/AllJobsPage.scala

-    val headerRow: Seq[Node] = {
-      jobHeadersAndCssClasses.map { case (header, cssClass, sortable, tooltip) =>
-        if (header == sortColumn) {
-          val headerLink = Unparsed(


Unparsed is imported but it's no longer used after this change.

sarutak · 2020-05-20T09:59:44Z

sql/core/src/main/scala/org/apache/spark/sql/execution/ui/AllExecutionsPage.scala

  }

  override def headers: Seq[Node] = {
    // Information for each header: title, sortable


Same comment as here.

sarutak · 2020-05-20T09:59:58Z

...thriftserver/src/main/scala/org/apache/spark/sql/hive/thriftserver/ui/ThriftServerPage.scala

-    val headerRow: Seq[Node] = {
-      sqlTableHeaders.zip(tooltips).map { case (header, tooltip) =>
-        if (header == sortColumn) {
-          val headerLink = Unparsed(


Same comment as here.

sarutak · 2020-05-20T10:00:55Z

...erver/src/main/scala/org/apache/spark/sql/hive/thriftserver/ui/ThriftServerSessionPage.scala


      val sqlTableTag = "sqlsessionstat"

-      val parameterOtherTable = request.getParameterMap().asScala


Same comment as here.

sarutak · 2020-05-20T10:42:36Z

...thriftserver/src/main/scala/org/apache/spark/sql/hive/thriftserver/ui/ThriftServerPage.scala

-              s"&$sessionStatsTableTag.pageSize=$pageSize" +
-              s"#$sessionStatsTableTag")
-          val arrow = if (desc) "&#x25BE;" else "&#x25B4;" // UP or DOWN
-            <th width={colWidthAttr}>

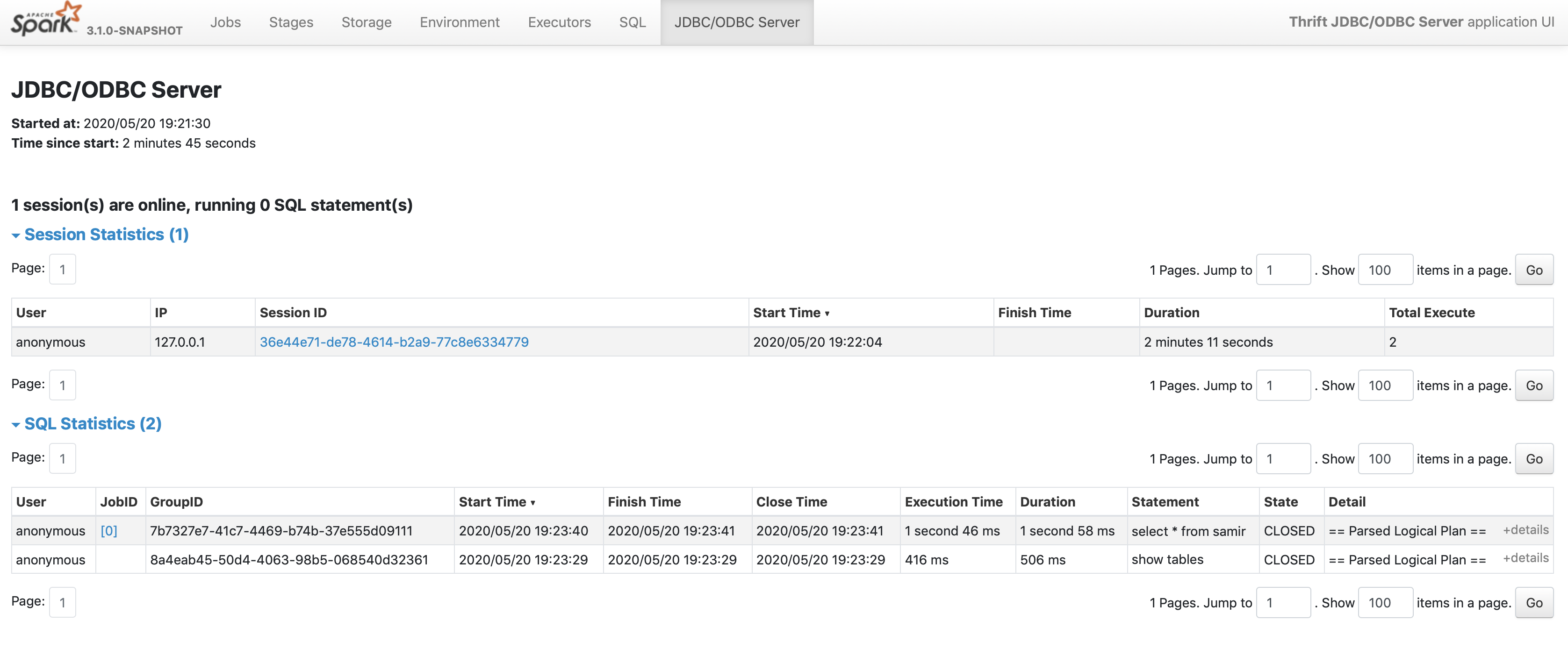

PagedTable#headerRow you added doesn't support the width of th.
Did you confirm it doesn't matter for ThriftServerPage?

Yeah, its working fine.

sarutak · 2020-05-20T10:44:20Z

core/src/main/scala/org/apache/spark/ui/PagedTable.scala

+      }
+    }
+    <thead>
+      {row}


{row} should be enclosed by <tr>.

iRakson · 2020-05-20T13:26:05Z

@sarutak Thank You for reviewing. Code is updated as per suggestions.

SparkQA · 2020-05-20T16:20:08Z

Test build #122899 has finished for PR 28512 at commit 50065ff.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

srowen · 2020-05-21T18:00:07Z

Merged to master

iRakson · 2020-05-21T18:06:29Z

Thank You. 😊 @srowen @sarutak

[SPARK-31688] refactor pagination framework

7775dd1

probot-autolabeler bot added CORE SQL WEB UI labels May 12, 2020

uncleGen mentioned this pull request May 13, 2020

[SPARK-31642] Add Pagination Support for Structured Streaming Page #28485

Closed

uncleGen reviewed May 13, 2020

View reviewed changes

refactor thriftserverPage

89194d3

fix

0f886d6

sarutak reviewed May 20, 2020

View reviewed changes

fix

50065ff

iRakson requested a review from sarutak May 20, 2020 13:26

sarutak approved these changes May 21, 2020

View reviewed changes

srowen closed this in f1495c5 May 21, 2020

		def getTableParameters(request: HttpServletRequest, tableTag: String,
		defaultSortColumn: String): (String, Boolean, Int) = {


		val sqlTableTag = "sqlsessionstat"

		val parameterOtherTable = request.getParameterMap().asScala
