[SPARK-29543][SS][UI]Structured Streaming Web UI

core/src/main/resources/org/apache/spark/ui/static/structured-streaming-page.js

@@ -0,0 +1,171 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+// pre-define some colors for legends.
+var colorPool = ["#F8C471", "#F39C12", "#B9770E", "#73C6B6", "#16A085", "#117A65", "#B2BABB", "#7F8C8D", "#616A6B"];
+

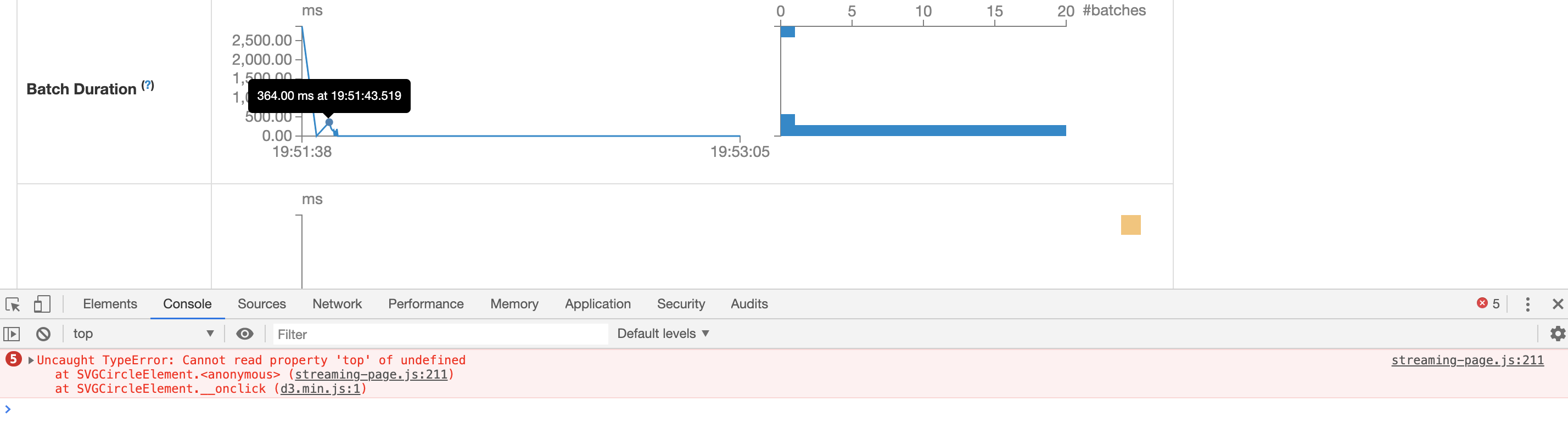

+function drawAreaStack(id, labels, values, minX, maxX, minY, maxY) {
+    d3.select(d3.select(id).node().parentNode)
+        .style("padding", "8px 0 8px 8px")
+        .style("border-right", "0px solid white");
+
+    // Setup svg using Bostock's margin convention
+    var margin = {top: 20, right: 40, bottom: 30, left: maxMarginLeftForTimeline};
+    var width = 850 - margin.left - margin.right;
+    var height = 300 - margin.top - margin.bottom;
+
+    var svg = d3.select(id)
+        .append("svg")
+        .attr("width", width + margin.left + margin.right)
+        .attr("height", height + margin.top + margin.bottom)
+        .append("g")
+        .attr("transform", "translate(" + margin.left + "," + margin.top + ")");
+
+    var data = values;
+
+    var parse = d3.time.format("%H:%M:%S.%L").parse;
+
+    // Transpose the data into layers
+    var dataset = d3.layout.stack()(labels.map(function(fruit) {
+        return data.map(function(d) {
+            return {_x: d.x, x: parse(d.x), y: +d[fruit]};
+        });
+    }));
+
+
+    // Set x, y and colors
+    var x = d3.scale.ordinal()
+        .domain(dataset[0].map(function(d) { return d.x; }))
+        .rangeRoundBands([10, width-10], 0.02);
+
+    var y = d3.scale.linear()
+        .domain([0, d3.max(dataset, function(d) {  return d3.max(d, function(d) { return d.y0 + d.y; });  })])
+        .range([height, 0]);
+
+    var colors = colorPool.slice(0, labels.length)
+
+    // Define and draw axes
+    var yAxis = d3.svg.axis()
+        .scale(y)
+        .orient("left")
+        .ticks(7)
+        .tickFormat( function(d) { return d } );
+
+    var xAxis = d3.svg.axis()
+        .scale(x)
+        .orient("bottom")
+        .tickFormat(d3.time.format("%H:%M:%S.%L"));
+
+    // Only show the first and last time in the graph
+    var xline = []
+    xline.push(x.domain()[0])
+    xline.push(x.domain()[x.domain().length - 1])
+    xAxis.tickValues(xline);
+
+    svg.append("g")
+        .attr("class", "y axis")
+        .call(yAxis)
+        .append("text")
+            .attr("transform", "translate(0," + unitLabelYOffset + ")")
+            .text("ms");
+
+    svg.append("g")
+        .attr("class", "x axis")
+        .attr("transform", "translate(0," + height + ")")
+        .call(xAxis);
+
+    // Create groups for each series, rects for each segment
+    var groups = svg.selectAll("g.cost")
+        .data(dataset)
+        .enter().append("g")
+        .attr("class", "cost")
+        .style("fill", function(d, i) { return colors[i]; });
+
+    var rect = groups.selectAll("rect")
+        .data(function(d) { return d; })
+        .enter()
+        .append("rect")
+        .attr("x", function(d) { return x(d.x); })
+        .attr("y", function(d) { return y(d.y0 + d.y); })
+        .attr("height", function(d) { return y(d.y0) - y(d.y0 + d.y); })
+        .attr("width", x.rangeBand())
+        .on('mouseover', function(d) {
+            var tip = '';
+            var idx = 0;
+            var _values = timeToValues[d._x]
+            _values.forEach(function (k) {
+                tip += labels[idx] + ': ' + k + '   ';
+                idx += 1;
+            });
+            tip += " at " + d._x
+            showBootstrapTooltip(d3.select(this).node(), tip);
+        })
+        .on('mouseout',  function() {
+            hideBootstrapTooltip(d3.select(this).node());
+        })
+        .on("mousemove", function(d) {
+            var xPosition = d3.mouse(this)[0] - 15;
+            var yPosition = d3.mouse(this)[1] - 25;
+            tooltip.attr("transform", "translate(" + xPosition + "," + yPosition + ")");
+            tooltip.select("text").text(d.y);
+        });
+
+
+    // Draw legend
+    var legend = svg.selectAll(".legend")
+        .data(colors)
+        .enter().append("g")
+        .attr("class", "legend")
+        .attr("transform", function(d, i) { return "translate(30," + i * 19 + ")"; });
+
+    legend.append("rect")
+        .attr("x", width - 20)
+        .attr("width", 18)
+        .attr("height", 18)
+        .style("fill", function(d, i) {return colors.slice().reverse()[i];})
+        .on('mouseover', function(d, i) {
+            var len = labels.length
+            showBootstrapTooltip(d3.select(this).node(), labels[len - 1 - i]);
+        })
+        .on('mouseout',  function() {
+            hideBootstrapTooltip(d3.select(this).node());
+        })
+        .on("mousemove", function(d) {
+            var xPosition = d3.mouse(this)[0] - 15;
+            var yPosition = d3.mouse(this)[1] - 25;
+            tooltip.attr("transform", "translate(" + xPosition + "," + yPosition + ")");
+            tooltip.select("text").text(d.y);
+        });
+
+    // Prep the tooltip bits, initial display is hidden
+    var tooltip = svg.append("g")
+        .attr("class", "tooltip")
+        .style("display", "none");
+
+    tooltip.append("rect")
+        .attr("width", 30)
+        .attr("height", 20)
+        .attr("fill", "white")
+        .style("opacity", 0.5);
+
+    tooltip.append("text")
+        .attr("x", 15)
+        .attr("dy", "1.2em")
+        .style("text-anchor", "middle")
+        .attr("font-size", "12px")
+        .attr("font-weight", "bold");
+}

core/src/main/resources/org/apache/spark/ui/static/webui.js

@@ -90,6 +90,8 @@ $(function() {
   collapseTablePageLoad('collapse-aggregated-sessionstat','aggregated-sessionstat');
   collapseTablePageLoad('collapse-aggregated-sqlstat','aggregated-sqlstat');
   collapseTablePageLoad('collapse-aggregated-sqlsessionstat','aggregated-sqlsessionstat');
+  collapseTablePageLoad('collapse-aggregated-activeQueries','aggregated-activeQueries');
+  collapseTablePageLoad('collapse-aggregated-completedQueries','aggregated-completedQueries');
 });

 $(function() {

core/src/main/scala/org/apache/spark/ui/GraphUIData.scala

@@ -0,0 +1,169 @@
+/*
+ * Licensed to the Apache Software Foundation (ASF) under one or more
+ * contributor license agreements.  See the NOTICE file distributed with
+ * this work for additional information regarding copyright ownership.
+ * The ASF licenses this file to You under the Apache License, Version 2.0
+ * (the "License"); you may not use this file except in compliance with
+ * the License.  You may obtain a copy of the License at
+ *
+ *    http://www.apache.org/licenses/LICENSE-2.0
+ *
+ * Unless required by applicable law or agreed to in writing, software
+ * distributed under the License is distributed on an "AS IS" BASIS,
+ * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
+ * See the License for the specific language governing permissions and
+ * limitations under the License.
+ */
+
+package org.apache.spark.ui
+
+import java.{util => ju}
+import java.lang.{Long => JLong}
+
+import scala.collection.JavaConverters._
+import scala.collection.mutable.ArrayBuffer
+import scala.xml.{Node, Unparsed}
+
+/**
+ * A helper class to generate JavaScript and HTML for both timeline and histogram graphs.
+ *
+ * @param timelineDivId the timeline `id` used in the html `div` tag
+ * @param histogramDivId the timeline `id` used in the html `div` tag
+ * @param data the data for the graph
+ * @param minX the min value of X axis
+ * @param maxX the max value of X axis
+ * @param minY the min value of Y axis
+ * @param maxY the max value of Y axis
+ * @param unitY the unit of Y axis
+ * @param batchInterval if `batchInterval` is not None, we will draw a line for `batchInterval` in
+ *                      the graph
+ */
+private[spark] class GraphUIData(
+    timelineDivId: String,
+    histogramDivId: String,
+    data: Seq[(Long, Double)],
+    minX: Long,
+    maxX: Long,
+    minY: Double,
+    maxY: Double,
+    unitY: String,
+    batchInterval: Option[Double] = None) {
+
+  private var dataJavaScriptName: String = _
+
+  def generateDataJs(jsCollector: JsCollector): Unit = {
+    val jsForData = data.map { case (x, y) =>
+      s"""{"x": $x, "y": $y}"""
+    }.mkString("[", ",", "]")
+    dataJavaScriptName = jsCollector.nextVariableName
+    jsCollector.addPreparedStatement(s"var $dataJavaScriptName = $jsForData;")
+  }
+
+  def generateTimelineHtml(jsCollector: JsCollector): Seq[Node] = {
+    jsCollector.addPreparedStatement(s"registerTimeline($minY, $maxY);")
+    if (batchInterval.isDefined) {
+      jsCollector.addStatement(
+        "drawTimeline(" +
+          s"'#$timelineDivId', $dataJavaScriptName, $minX, $maxX, $minY, $maxY, '$unitY'," +
+          s" ${batchInterval.get}" +
+          ");")
+    } else {
+      jsCollector.addStatement(
+        s"drawTimeline('#$timelineDivId', $dataJavaScriptName, $minX, $maxX, $minY, $maxY," +
+          s" '$unitY');")
+    }
+    <div id={timelineDivId}></div>
+  }
+
+  def generateHistogramHtml(jsCollector: JsCollector): Seq[Node] = {
+    val histogramData = s"$dataJavaScriptName.map(function(d) { return d.y; })"
+    jsCollector.addPreparedStatement(s"registerHistogram($histogramData, $minY, $maxY);")
+    if (batchInterval.isDefined) {
+      jsCollector.addStatement(
+        "drawHistogram(" +
+          s"'#$histogramDivId', $histogramData, $minY, $maxY, '$unitY', ${batchInterval.get}" +
+          ");")
+    } else {
+      jsCollector.addStatement(
+        s"drawHistogram('#$histogramDivId', $histogramData, $minY, $maxY, '$unitY');")
+    }
+    <div id={histogramDivId}></div>
+  }
+
+  def generateAreaStackHtmlWithData(
+      jsCollector: JsCollector,
+      values: Array[(Long, ju.Map[String, JLong])]): Seq[Node] = {
+    val operationLabels = values.flatMap(_._2.keySet().asScala).toSet
+    val durationDataPadding = UIUtils.durationDataPadding(values)
+    val jsForData = durationDataPadding.map { case (x, y) =>
+      val s = y.toSeq.sortBy(_._1).map(e => s""""${e._1}": "${e._2}"""").mkString(",")
+      s"""{x: "${UIUtils.formatBatchTime(x, 1, showYYYYMMSS = false)}", $s}"""
+    }.mkString("[", ",", "]")
+    val jsForLabels = operationLabels.toSeq.sorted.mkString("[\"", "\",\"", "\"]")
+
+    val (maxX, minX, maxY, minY) = if (values != null && values.length > 0) {
+      val xValues = values.map(_._1.toLong)
+      val yValues = values.map(_._2.asScala.toSeq.map(_._2.toLong).sum)
+      (xValues.max, xValues.min, yValues.max, yValues.min)
+    } else {
+      (0L, 0L, 0L, 0L)
+    }
+
+    dataJavaScriptName = jsCollector.nextVariableName
+    jsCollector.addPreparedStatement(s"var $dataJavaScriptName = $jsForData;")
+    val labels = jsCollector.nextVariableName
+    jsCollector.addPreparedStatement(s"var $labels = $jsForLabels;")
+    jsCollector.addStatement(
+      s"drawAreaStack('#$timelineDivId', $labels, $dataJavaScriptName, $minX, $maxX, $minY, $maxY)")
+    <div id={timelineDivId}></div>
+  }
+}
+
+/**
+ * A helper class that allows the user to add JavaScript statements which will be executed when the
+ * DOM has finished loading.
+ */
+private[spark] class JsCollector {
+
+  private var variableId = 0
+
+  /**
+   * Return the next unused JavaScript variable name
+   */
+  def nextVariableName: String = {
+    variableId += 1
+    "v" + variableId
+  }
+
+  /**
+   * JavaScript statements that will execute before `statements`
+   */
+  private val preparedStatements = ArrayBuffer[String]()
+
+  /**
+   * JavaScript statements that will execute after `preparedStatements`
+   */
+  private val statements = ArrayBuffer[String]()
+
+  def addPreparedStatement(js: String): Unit = {
+    preparedStatements += js
+  }
+
+  def addStatement(js: String): Unit = {
+    statements += js
+  }
+
+  /**
+   * Generate a html snippet that will execute all scripts when the DOM has finished loading.
+   */
+  def toHtml: Seq[Node] = {
+    val js =
+      s"""
+         |$$(document).ready(function() {
+         |    ${preparedStatements.mkString("\n")}
+         |    ${statements.mkString("\n")}
+         |});""".stripMargin
+
+    <script>{Unparsed(js)}</script>
+  }
+}
