[SPARK-24645][SQL] Skip parsing when csvColumnPruning enabled and partitions scanned only #21631

maropu · 2018-06-25T04:38:44Z

What changes were proposed in this pull request?

In the master, when csvColumnPruning(implemented in this commit) enabled and partitions scanned only, it throws an exception below;

scala> val dir = "/tmp/spark-csv/csv"
scala> spark.range(10).selectExpr("id % 2 AS p", "id").write.mode("overwrite").partitionBy("p").csv(dir)
scala> spark.read.csv(dir).selectExpr("sum(p)").collect()
18/06/25 13:12:51 ERROR Executor: Exception in task 0.0 in stage 2.0 (TID 5)
java.lang.NullPointerException
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser.org$apache$spark$sql$execution$datasources$csv$UnivocityParser$$convert(UnivocityParser.scala:197)
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser.parse(UnivocityParser.scala:190)
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser$$anonfun$5.apply(UnivocityParser.scala:309)
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser$$anonfun$5.apply(UnivocityParser.scala:309)
        at org.apache.spark.sql.execution.datasources.FailureSafeParser.parse(FailureSafeParser.scala:61)
        ...

This pr modified code to skip CSV parsing in the case.

How was this patch tested?

Added tests in CSVSuite.

maropu · 2018-06-25T04:39:02Z

cc: @HyukjinKwon @MaxGekk

HyukjinKwon

@maropu, mind if I ask to run the benchmark added in #21415 again?

maropu · 2018-06-25T04:54:17Z

@HyukjinKwon sure, I'll do

maropu · 2018-06-25T05:00:14Z

sql/core/src/test/scala/org/apache/spark/sql/execution/datasources/csv/CSVSuite.scala

+      withTempPath { path =>
+        val dir = path.getAbsolutePath
+        spark.range(10).selectExpr("id % 2 AS p", "id").write.partitionBy("p").csv(dir)
+        spark.read.csv(dir).selectExpr("sum(p)").collect()


oh, I forgot to add assert here. I'll update soon.

maropu · 2018-06-25T06:23:44Z

As I described in #21625 (comment), I found another bug? (the case where spark.sql.csv.parser.columnPruning.enabled=false) when working on this pr;

./bin/spark-shell --conf spark.sql.csv.parser.columnPruning.enabled=false
scala> val dir = "/tmp/spark-csv/csv"
scala> spark.range(10).selectExpr("id % 2 AS p", "id").write.mode("overwrite").partitionBy("p").csv(dir)
scala> spark.read.csv(dir).selectExpr("sum(p)").collect()
18/06/25 13:48:46 ERROR Executor: Exception in task 2.0 in stage 2.0 (TID 7)
java.lang.ClassCastException: org.apache.spark.unsafe.types.UTF8String cannot be cast to java.lang.Integer
        at scala.runtime.BoxesRunTime.unboxToInt(BoxesRunTime.java:101)
        at org.apache.spark.sql.catalyst.expressions.BaseGenericInternalRow$class.getInt(rows.scala:41)
        ...

I worked on this fix and made a patch to fix this; master...maropu:SPARK-24645-2

gatorsmile · 2018-06-25T06:44:33Z

@maropu Could you confirm whether these two bugs are regressions in the master branch?

maropu · 2018-06-25T06:51:43Z

yea, I think this is regressions because I checked that the query above passed in the master before this commit.

gatorsmile · 2018-06-25T06:53:10Z

Both?

SparkQA · 2018-06-25T07:05:02Z

Test build #92284 has finished for PR 21631 at commit c7362dc.

This patch fails due to an unknown error code, -9.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2018-06-25T07:05:02Z

Test build #92282 has finished for PR 21631 at commit 59a7f14.

This patch fails due to an unknown error code, -9.
This patch merges cleanly.
This patch adds no public classes.

maropu · 2018-06-25T07:38:03Z

yea, I checked the two queries with/without column pruning in the master;

./bin/spark-shell --conf spark.sql.csv.parser.columnPruning.enabled=true (default)
scala> val dir = "/tmp/spark-csv/csv"

// Q1: NG
scala> spark.range(10).selectExpr("id % 2 AS p", "id").write.mode("overwrite").partitionBy("p").csv(dir)
scala> spark.read.csv(dir).selectExpr("sum(p)").collect()
18/06/25 16:16:30 ERROR Executor: Exception in task 0.0 in stage 2.0 (TID 5)
java.lang.NullPointerException
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser.org$apache$spark$sql$execution$datasources$csv$UnivocityParser$$convert(UnivocityParser.scal
a:193)
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser.parse(UnivocityParser.scala:190)
        at org.apache.spark.sql.execution.datasources.csv.UnivocityParser$$anonfun$5.apply(UnivocityParser.scala:305)

// Q2: OK
scala> spark.range(10).selectExpr("id % 2 AS p", "id AS c0", "id AS c1").write.mode("overwrite").partitionBy("p").csv(dir)
scala> spark.read.csv(dir).selectExpr("sum(p)", "avg(_c0)").collect()
res11: Array[org.apache.spark.sql.Row] = Array([5,4.5])




./bin/spark-shell --conf spark.sql.csv.parser.columnPruning.enabled=false
// Q1: NG
scala> spark.range(10).selectExpr("id % 2 AS p", "id").write.mode("overwrite").partitionBy("p").csv(dir)
scala> spark.read.csv(dir).selectExpr("sum(p)").collect()
Caused by: java.lang.ClassCastException: org.apache.spark.unsafe.types.UTF8String cannot be cast to java.lang.Integer
  at scala.runtime.BoxesRunTime.unboxToInt(BoxesRunTime.java:101)
  at org.apache.spark.sql.catalyst.expressions.BaseGenericInternalRow$class.getInt(rows.scala:41)
  at org.apache.spark.sql.catalyst.expressions.GenericInternalRow.getInt(rows.scala:195)
  at org.apache.spark.sql.catalyst.expressions.JoinedRow.getInt(JoinedRow.scala:82)

// Q2: NG
scala> spark.range(10).selectExpr("id % 2 AS p", "id AS c0", "id AS c1").write.mode("overwrite").partitionBy("p").csv(dir)
scala> spark.read.csv(dir).selectExpr("sum(p)", "avg(_c0)").collect()
18/06/25 16:23:55 ERROR TaskSetManager: Task 0 in stage 14.0 failed 1 times; aborting job
org.apache.spark.SparkException: Job aborted due to stage failure: Task 0 in stage 14.0 failed 1 times, most recent failure: Lost task 0.0 in stage 14.0 (TID 32, loca
lhost, executor driver): java.lang.ClassCastException
Caused by: java.lang.ClassCastException

The two queries is ok in v2.3.1 and in the master before the commit.

maropu · 2018-06-25T07:38:46Z

retest this please

SparkQA · 2018-06-25T11:32:18Z

Test build #92293 has finished for PR 21631 at commit c7362dc.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

MaxGekk · 2018-06-25T12:52:31Z

Looking at the NullPointerException, it comes from the line:

if (tokens.length != schema.length) {

where tokens is null returned by parseLine of UnivocityParser. The parseLine method is implemented in the way that it can return null in some cases:
https://github.com/uniVocity/univocity-parsers/blob/v2.6.4/src/main/java/com/univocity/parsers/common/AbstractParser.java#L636-L679

I think the right fix would be to check result of parseLine on null explicitly and throw BadRecordException if it makes sense.

Just in case, I have checked the commit before my changes - it also doesn't contain checking returned value of parseLine on null.

HyukjinKwon · 2018-06-25T13:02:28Z

Wouldn't it be better to check schema if it works instead of value per record?

MaxGekk · 2018-06-25T13:45:43Z

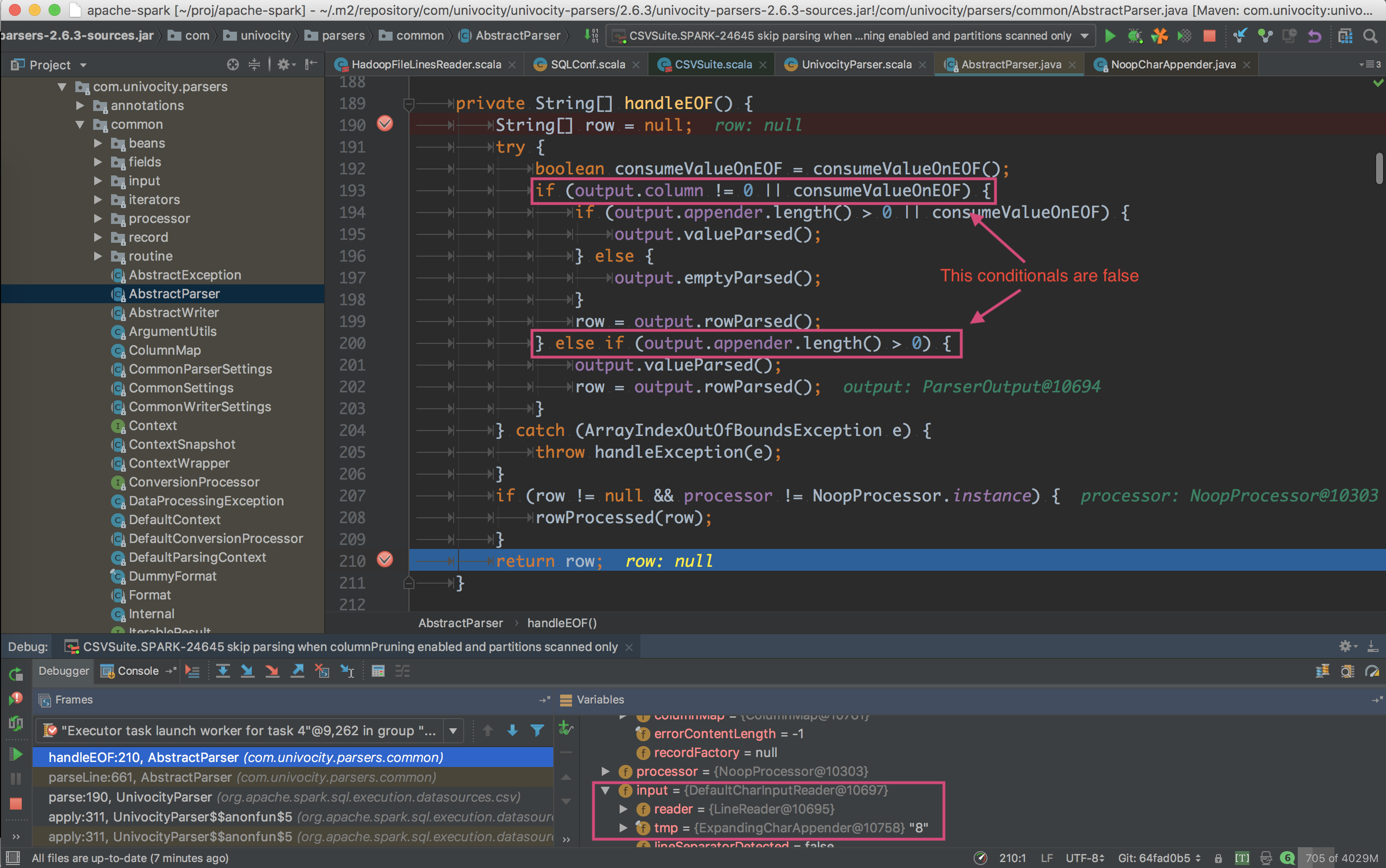

I have found the places inside of UnivocityParser from where the null comes. It is interesting that null is returned for valid input string "8". See the screenshot:

The "8" string is at the end of a file. The file doesn't contain anything unusual:

hexdump -C /private/var/folders/vt/f...c000.csv

00000000  36 0a 38 0a                                       |6.8.|
00000004

maropu · 2018-06-25T13:54:28Z

@MaxGekk yea, I noticed that behaviour. Probably, in case we set an empty array in CommonSettings.selectIndexes, it seems UnivocityParser returns null for valid input? I'm not sure setting an empty array there is valid. Anyway, to fix this bug, I think we don't need to check values record-by-record because reuiqredSchema is empty as @HyukjinKwon said.

MaxGekk · 2018-06-25T14:01:55Z

It seems null for Univocity's parserLine is normal way to indicate about an error. Should we handle nulls and throw BadRecordException instead of propagating NPE to user's app I mean other cases when null can be returned?

HyukjinKwon · 2018-06-25T14:37:56Z

So you mean it's a bug in Univocity? that's another fix for a bug existing in Univocity then. We could work around this bug if it's clear that's a bug. I would suggest to open a bug there if we are not sure in any event. FWIW, their support is quite responsive when the issue is reported with a clear reproducer and descriptions. this issue sounds slightly orthogonal to the JIRA itself though.

MaxGekk · 2018-06-25T15:11:21Z

So you mean it's a bug in Univocity?

No, I mean we don't handle null from Univocity's parseLine at all (in another situations), and we just propagate NullPointerException to an user instead of producing of BadRecordException. The BadRecordException can be handled differently there

spark/sql/core/src/main/scala/org/apache/spark/sql/execution/datasources/FailureSafeParser.scala

Lines 59 to 73 in 1a527bd


           def parse(input: IN): Iterator[InternalRow] = {

             try {

               rawParser.apply(input).toIterator.map(row => toResultRow(Some(row), () => null))

             } catch {

               case e: BadRecordException => mode match {

                 case PermissiveMode =>

                   Iterator(toResultRow(e.partialResult(), e.record))

                 case DropMalformedMode =>

                   Iterator.empty

                 case FailFastMode =>

                   throw new SparkException("Malformed records are detected in record parsing. " +

                     s"Parse Mode: ${FailFastMode.name}.", e.cause)

               }

             }

           }

depend on current mode. In DropMalformedMode mode, for example, we could just drop the line instead of propagating NPE to user space.

HyukjinKwon · 2018-06-25T15:23:17Z

I mean null is returned for valid input string "8". I thought this is a bug. If there's valid case returning null, yea we should handle null of course if that's only the way to handle it but the case you mentioned sounds like a bug, which should probably be worked around in Spark (or bumping up the version of Univocity if they happen to make a release). But first we should be sure if it's a bug or not for this anyway.

MaxGekk · 2018-06-25T17:52:39Z

But first we should be sure if it's a bug or not for this anyway.

I will try to reproduce it on small example without Spark. I am not sure what the expected behavior should be if set of selected columns is empty. Should the parseLine return null, empty array of Strings or something else. Will see...

MaxGekk · 2018-06-25T17:59:09Z

sql/core/src/main/scala/org/apache/spark/sql/execution/datasources/csv/UnivocityParser.scala

    }
  }

+  private lazy val doParse = if (schema.nonEmpty) {


Do you really need lazy here. In most cases, time interval between calling of the constructor and the parse() method is pretty short. I don't think we win something here.

yea, I missed. Thanks!

recheck: it seems parse is called in executor sides only, so we can add lazy here to avoid unnecessary instantiation?

SparkQA · 2018-06-26T02:04:27Z

Test build #92317 has finished for PR 21631 at commit 39811a3.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

MaxGekk · 2018-06-26T14:32:28Z

Here is the test for uniVocity parser: https://github.com/MaxGekk/univocity_tests . For the first line, parseLine outputs empty array but nulls for the next calls. What do you think should I create an issue for uniVocity? I believe output should be consistent and all calls should return the same at least. And I would expect empty array for all calls.

maropu · 2018-06-26T14:40:41Z

v2.5.9 also have the same behaviour? Anyway, it'd be better to ask the author ;) I asked before and I got quick response.

MaxGekk · 2018-06-26T15:33:23Z

v2.5.9 also have the same behaviour?

yes, it is the same.

Anyway, it'd be better to ask the author ;) I asked before and I got quick response.

ok. I will create an issue for uniVocity.

maropu · 2018-06-28T00:56:30Z

@HyukjinKwon BTW, can you check this?
@MaxGekk Probably, I feel you'd be better to file a new jira for the point you're looking into.

HyukjinKwon · 2018-06-28T01:18:49Z

LGTM.

@MaxGekk please take a following action. Will help and check if it's needed.

HyukjinKwon · 2018-06-28T01:19:37Z

Merged to master.

MaxGekk · 2018-06-29T20:12:36Z

please take a following action. Will help and check if it's needed.

I have opened the issue for uniVocity parser: uniVocity/univocity-parsers#250

MaxGekk · 2018-06-30T17:47:53Z

The bug has been already fixed in uniVocity 2.6.5-SNAPSHOT

maropu · 2018-07-02T08:03:38Z

oh, super quick fix ;) Thanks, @MaxGekk
In the master, do we still hit the bug when parsing csv data?

MaxGekk · 2018-07-27T09:16:49Z

do we still hit the bug when parsing csv data?

I have checked uniVocity 2.7.2, there is no problem on this version.

HyukjinKwon · 2018-07-27T09:27:37Z

@MaxGekk, thanks. mind opening a PR to upgrade?
