HDDS-3223. Improve s3g read 1GB object efficiency by 100 times

[runzhiwang]

What changes were proposed in this pull request?

What's the problem ?

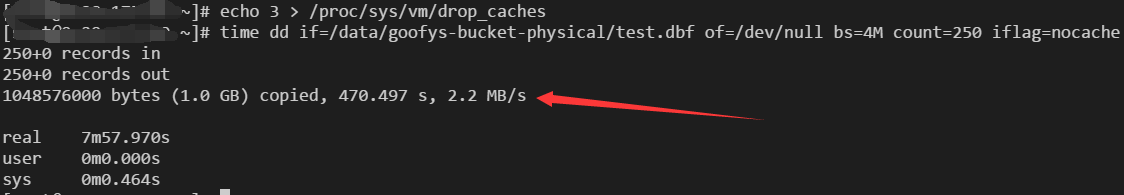

Use dd to read 1000M object from ozone bucket mounted by goofys, it cost about 470 seconds, i.e. 2.2M/s, which is too slow.

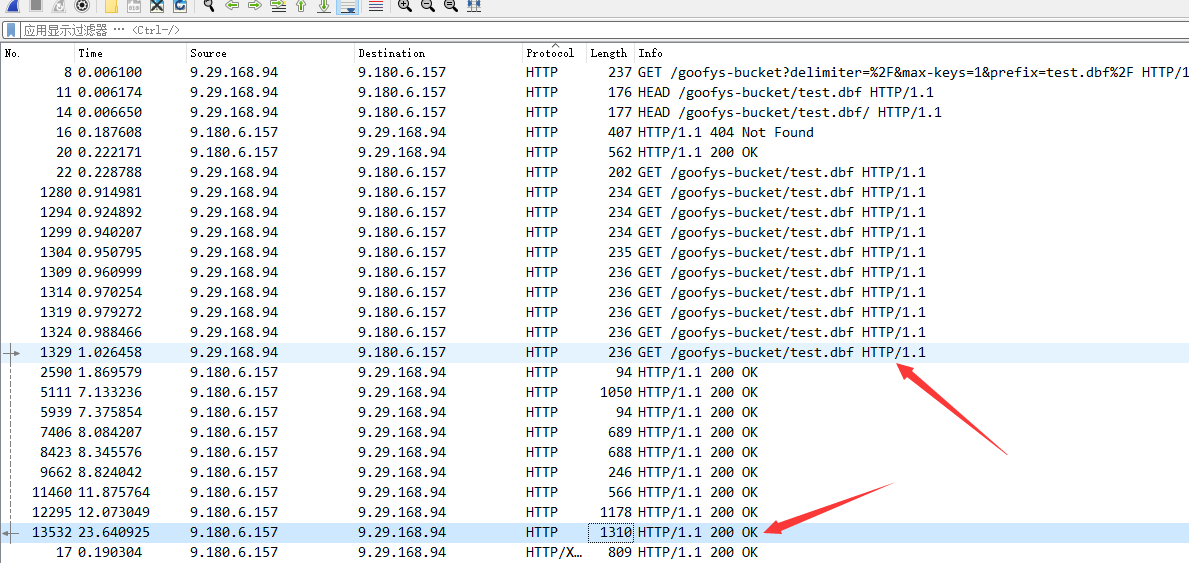

I also use tcpdump to capture the packet when I read 200M object. As the image shows, the 1st GET request cost about 1 second, but the 10th GET request cost about 22 seconds. The GET request become slower and slower.

What's the reason ?
When read 1000M object, there are 50 GET requests, each GET request read 20M. When do GET, the stack is: IOUtils::copyLarge -> IOUtils::skipFully -> IOUtils::skip -> InputStream::read.

It means, the 50th GET request which should read 980M-1000M, but to skip 0-980M, it also InputStream::read 0-980M. So the 1st GET request read 0-20M, the 2nd GET request read 0-40M, the 3rd GET request read 0-60M, ..., the 50th GET request read 0-1000M. So the GET request from 1st-50th become slower and slower.

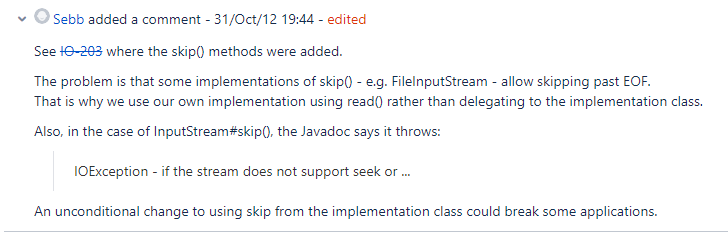

You can also refer IO-203 and IO-355 why IOUtils implement skip by read rather than real skip, e.g. seek.

How to improve ?
Copy IOUtils::copyLarge to S3WrapperInputStream, and replace IOUtils::skipFully with S3WrapperInputStream::seek. No other changes of IOUtils::copyLarge.

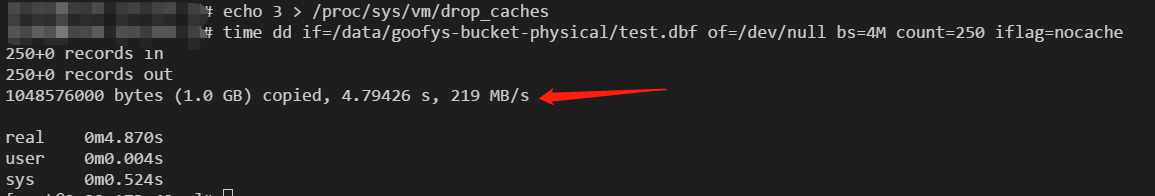

After improving, read 1000M object cost 4.79 seconds, i.e. 219M/s, about 100 times faster.

What is the link to the Apache JIRA

https://issues.apache.org/jira/browse/HDDS-3223

How was this patch tested?

Existed UT and IT.

[bharatviswa504]

Thank You @runzhiwang for the analysis and great improvement in read performance.

I see there is one more usage of IOUtils.copyLarge in createMultipartKey, can we update over there also with a similar change.

L534:

            if (range != null) {
              RangeHeader rangeHeader =
                  RangeHeaderParserUtil.parseRangeHeader(range, 0);
              IOUtils.copyLarge(sourceObject, ozoneOutputStream,
                  rangeHeader.getStartOffset(),
                  rangeHeader.getEndOffset() - rangeHeader.getStartOffset());

            }

And also can we add test for S3WrapperInputStream which tests a new method with multiple seek values.

[runzhiwang]

Thank You @runzhiwang for the analysis and great improvement in read performance.

I see there is one more usage of IOUtils.copyLarge in createMultipartKey, can we update over there also with a similar change.

L534:

            if (range != null) {
              RangeHeader rangeHeader =
                  RangeHeaderParserUtil.parseRangeHeader(range, 0);
              IOUtils.copyLarge(sourceObject, ozoneOutputStream,
                  rangeHeader.getStartOffset(),
                  rangeHeader.getEndOffset() - rangeHeader.getStartOffset());

            }

And also can we add test for S3WrapperInputStream which tests a new method with multiple seek values.
@bharatviswa504 I will handle this. Thanks for your comments.

[runzhiwang]

@bharatviswa504 Hi, I move copyLarge into KeyInputStream, and add integration test in TestKeyInputStream for it. And also change all the use of IOUtils.copyLarge.

[runzhiwang]

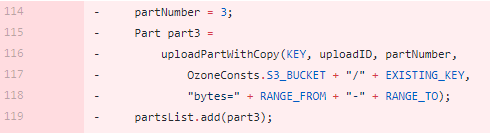

I delete the following code because the InputStream in unit test is ByteArrayInputStream, it cannot be cast into KeyInputStream when new S3WrapperInputStream(sourceObject.getInputStream())).

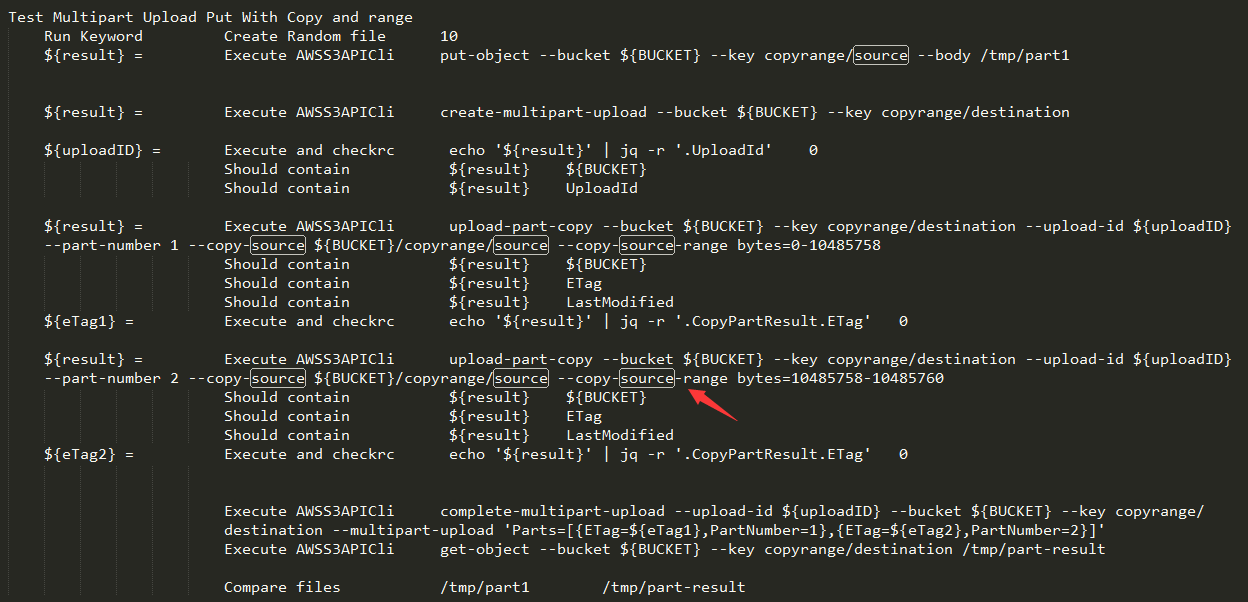

It's ok to delete it, because there are other test to cover the case, such as MultipartUpload.robot as the image shows.

[bharatviswa504]

+1 LGTM.
Thank you @runzhiwang for the improvement.
