HDDS-5480. [Ozone-Streaming] Client and server should support stream setup. #2452

captainzmc · 2021-07-22T12:28:17Z

What changes were proposed in this pull request?

Before we add new BlockDataStreamOutput, we need to support stream setup. In this way, we can get the DataStreamOutput instance through xceiverClient.

We can DataStreamOutput instance as we used in our POC code.

What is the link to the Apache JIRA

https://issues.apache.org/jira/browse/HDDS-5480

How was this patch tested?

CI test will be added after DataStreamOutput Client is finished

hadoop-hdds/common/src/main/java/org/apache/hadoop/hdds/ratis/RatisHelper.java

mukul1987 · 2021-07-22T12:34:29Z

hadoop-hdds/client/src/main/java/org/apache/hadoop/hdds/scm/XceiverClientGrpc.java

    return responseProtoHashMap;
  }

+  // TODO: We need separate XceiverClientRatis and XceiverClientGrpc instances


Lets create a jira for this

mukul1987 · 2021-07-22T13:32:37Z

hadoop-hdds/common/src/main/resources/ozone-default.xml

  </property>
+  <property>
+    <name>dfs.container.ratis.datastream.ipc</name>
+    <value>9890</value>


These values are different from the values in the java conf file.

I will fix the problem and we should not use port 9890. This will conflict with the port in docker-compose

mukul1987 · 2021-07-22T13:34:43Z

hadoop-hdds/interface-client/src/main/proto/DatanodeClientProtocol.proto

  CloseContainer = 17;
  GetCommittedBlockLength = 18;
+
+  StreamInit = 19;


lets start this at 30.

I tried to change this to 30, but I got an NPE exception when start datanode. Change this to 19 in order and it start normal.

mukul1987 · 2021-07-22T13:35:16Z

...iner-service/src/main/java/org/apache/hadoop/ozone/container/common/impl/HddsDispatcher.java

            && dispatcherContext.getStage()
-            == DispatcherContext.WriteChunkStage.WRITE_DATA);
+            == DispatcherContext.WriteChunkStage.WRITE_DATA)
+            || (cmdType == Type.StreamInit);


are there any callers sending stream init at this time ?

Not yet now. But next step, when our client initializes the DataStreamOutput, we will set CmdType to type.streamInit. As we implement in our POC code.

mukul1987 · 2021-07-22T14:38:41Z

One more question, whats the use of stream init, and how is it different from the first data packet to be sent from client to the datanode ?

bshashikant · 2021-07-22T14:37:19Z

...java/org/apache/hadoop/ozone/container/common/transport/server/ratis/XceiverServerRatis.java

+    // set the datastream config
+    NettyConfigKeys.DataStream.setPort(properties, dataStreamPort);
+    RaftConfigKeys.DataStream.setType(properties,
+        SupportedDataStreamType.NETTY);


can we do these stream specfic settings in a different function?

bshashikant · 2021-07-22T14:40:25Z

...tainer-service/src/main/java/org/apache/hadoop/ozone/container/keyvalue/KeyValueHandler.java

+      }
+
+      path = chunkManager
+          .streamInit(kvContainer, blockID, dispatcherContext);


I feel, we should set the dispacher contect as null here. Dispacher context being null during write will signify its a stream opeartion.

Also, stream classes should be coupled with ChunkManager. Let's maintain a clear separation. May be we can use StreamHandler. Common functionalities can be moved to chunkUtils.

I would try to change the current implementation in this way.

bshashikant · 2021-07-22T14:41:19Z

hadoop-hdds/interface-client/src/main/proto/DatanodeClientProtocol.proto

 message  WriteChunkRequestProto  {
  required DatanodeBlockID blockID = 1;
-  required ChunkInfo chunkData = 2;
+  optional ChunkInfo chunkData = 2;


isn't this backword incompatible?

Changed this from required to optional is compatible. The previous interface WriteChunkRequestProto must have chunkData. Init stream will use WriteChunkRequestProto, but do not require chunkData. Just like we implemented in the POC code.

bshashikant · 2021-07-22T14:44:19Z

hadoop-hdds/common/src/main/resources/ozone-default.xml

+  <property>
+    <name>dfs.container.ratis.datastream.request.threads</name>
+    <value>20</value>
+    <tag>OZONE, CONTAINER, RATIS, DATASTREAM</tag>


Cab we move these settings to DatanodeRatisServerConfig and clinet config keys separately?

Had moved datastream.request.threads and datastream.write.threads to DatanodeRatisServerConfig. The rest of the configurations are similar to those related to Container, and I keep them in this place for better management.

bshashikant · 2021-07-22T14:45:52Z

hadoop-hdds/client/src/main/java/org/apache/hadoop/hdds/scm/XceiverClientGrpc.java

+  @Override
+  public DataStreamApi getDataStreamApi() {
+    return null;
+  }


Its better to throw an exception here.

bshashikant · 2021-07-22T14:52:47Z

Thanks @captainzmc for working on this. I think, we need define a config option to enable/disable the feature both on client and server.

bshashikant · 2021-07-22T15:32:44Z

One more question, whats the use of stream init, and how is it different from the first data packet to be sent from client to the datanode ?

The strream init will be used to instantiate the streaming client instance and the will try to write the 1st packet.

kaijchen · 2021-07-23T03:02:09Z

One more question, whats the use of stream init, and how is it different from the first data packet to be sent from client to the datanode ?

Stream init do 2 things: build the stream pipeline, and get a file path from the container for subsequent writes.

Ratis: Build the stream pipeline according to the routing table. If no routing table is given, it will fallback to

Client -----> Primary -----> Secondary 1
                 |
                 +---------> Secondary 2

HDDS Container: prepare a file for write, but does not write any data. In our POC code, we let the ContainerStateMachine calculate the path of that file as if there is a WriteChunk request.

The first data packet, of course, write data into that file.

captainzmc · 2021-07-23T03:38:05Z

Thanks @captainzmc for working on this. I think, we need define a config option to enable/disable the feature both on client and server.

Thanks @bshashikant for the review and suggestions.

On the server side, I think it's easy to distinguish. We can added a config and check in XceiverServerRatis , to confirm whether eanble stream in RaftServer.
About the client. Can we write a key based on key size and decide whether to use stream? For example, we can add a configure and check this in putKeyHandler.java. If the key is smaller than the chunk size（4MB）, follow the original logic. If greater than, then use streaming.
And if the user uses the API directly, they can call our new interface directly. We won't make any changes to the existing Key/Block OutPutStream. We will add some new interfaces as described in the previous design. We also need to add new interfaces to RpcClient and OzoneBucket to use these interfaces.

captainzmc · 2021-07-23T07:44:14Z

I will solve the remaining review and CI problems.

szetszwo · 2021-07-26T16:38:18Z

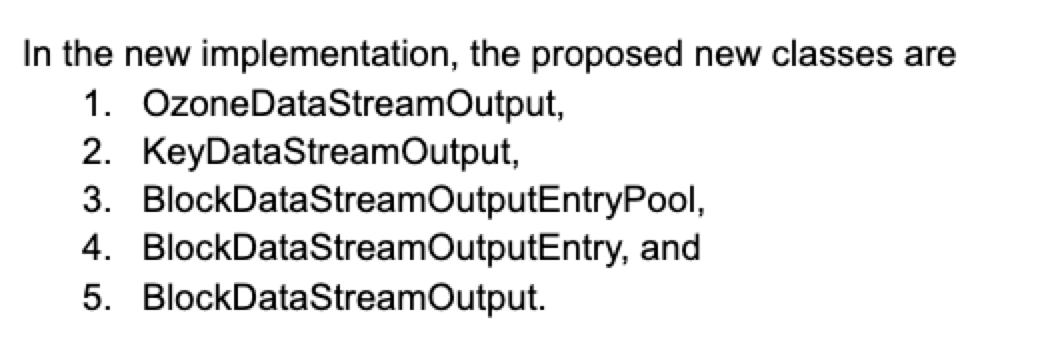

@captainzmc , Just have went through the entire change once. The change looks great! Will review this again tomorrow.

In the mean time, please take a look the build failures. Thanks a lot.

captainzmc · 2021-07-27T02:13:55Z

@captainzmc , Just have went through the entire change once. The change looks great! Will review this again tomorrow.

In the mean time, please take a look the build failures. Thanks a lot.

Yes, now I am solving the problem of CI failure, and I will update this PR again after solving it.

szetszwo

Thanks for the update. Some comments inlined.

szetszwo · 2021-07-27T05:54:23Z

hadoop-hdds/client/src/main/java/org/apache/hadoop/hdds/scm/XceiverClientGrpc.java

getDataStreamApi is yet not used. Let's add it later when it is being called.

BTW, we may only add the method to XceiverClientRatis and cast the object for calling it as below.

XceiverClientSpi client = ... DataStreamApi streamApi = ((XceiverClientRatis)client).getDataStreamApi();

Yes, we can add this when we implement the client

szetszwo · 2021-07-27T05:55:14Z

hadoop-hdds/common/src/main/java/org/apache/hadoop/hdds/protocol/DatanodeDetails.java

Let's call it RATIS_DATASTREAM.

szetszwo · 2021-07-27T05:59:09Z

hadoop-hdds/common/src/main/java/org/apache/hadoop/hdds/ratis/RatisHelper.java

Let's use the first node:

toRaftPeer(pipeline.getFirstNode()),

szetszwo · 2021-07-27T06:03:44Z

hadoop-hdds/common/src/main/java/org/apache/hadoop/ozone/OzoneConfigKeys.java

Let's remove "ipc", i.e. dfs.container.ratis.datastream.random.port". It is not really an ipc.

szetszwo · 2021-07-27T06:04:05Z

hadoop-hdds/common/src/main/java/org/apache/hadoop/ozone/OzoneConfigKeys.java

Let's rename this to "dfs.container.ratis.datastream.port".

szetszwo · 2021-07-27T06:05:36Z

...java/org/apache/hadoop/ozone/container/common/transport/server/ratis/XceiverServerRatis.java

Let's revert this whitespace change.

szetszwo

The change looks good. Just a minor comment inlined.

build-branch / acceptance (misc) (pull_request) Failing after 86m — acceptance (misc)

Please also take a look the build failure. Thanks.

szetszwo · 2021-07-27T13:55:17Z

hadoop-hdds/common/src/main/java/org/apache/hadoop/hdds/ratis/RatisHelper.java

+    // TODO: For now, always set first node as primary. In the future we should
+    //  use the local or closest node in the pipline.
+    final DatanodeDetails leader = pipeline.getLeaderNode();


The TODO can be removed since the first datanode is supposed to be the closest datanode. SCM is supposed to sort the datanode in the pipeline according the distance to the client. Not sure if SCM is currently sorting the datanodes. We should check the code.

BTW, the leader local variable is no longer needed. We should revert the change.

captainzmc · 2021-07-28T05:01:21Z

Hi @szetszwo @bshashikant @mukul1987 CI had been fixed. Could you help take another look？

szetszwo

+1 the change looks good.
