[HUDI-3478] Support CDC for Spark in Hudi #6476
New issue
Have a question about this project? Sign up for a free GitHub account to open an issue and contact its maintainers and the community.
By clicking “Sign up for GitHub”, you agree to our terms of service and privacy statement. We’ll occasionally send you account related emails.
Already on GitHub? Sign in to your account
Conversation
1fd639d to
0bc3211
Compare
|
nice work! |
|
@prasannarajaperumal @xushiyan |
xushiyan
left a comment
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
will review a few more rounds. can you please also populate the PR description as per the PR template
...cala/org/apache/spark/sql/execution/datasources/parquet/Spark31HoodieParquetFileFormat.scala
Outdated
Show resolved
Hide resolved
...-spark-datasource/hudi-spark/src/test/scala/org/apache/hudi/functional/cdc/TestCDCBase.scala
Outdated
Show resolved
Hide resolved
hudi-client/hudi-client-common/src/main/java/org/apache/hudi/io/HoodieAppendHandle.java
Show resolved
Hide resolved
hudi-client/hudi-client-common/src/main/java/org/apache/hudi/io/HoodieMergeHandle.java
Outdated
Show resolved
Hide resolved
hudi-client/hudi-client-common/src/main/java/org/apache/hudi/io/HoodieSortedMergeHandle.java
Show resolved
Hide resolved
hudi-common/src/main/java/org/apache/hudi/common/table/HoodieTableConfig.java
Outdated
Show resolved
Hide resolved
hudi-common/src/main/java/org/apache/hudi/common/table/cdc/CDCFileTypeEnum.java
Outdated
Show resolved
Hide resolved
hudi-common/src/main/java/org/apache/hudi/common/table/cdc/CDCOperationEnum.java
Outdated
Show resolved
Hide resolved
| totalLogBlocks.incrementAndGet(); | ||
| if (logBlock.getBlockType() == CDC_DATA_BLOCK) { | ||
| // hit a cdc block, just skip. | ||
| continue; |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.

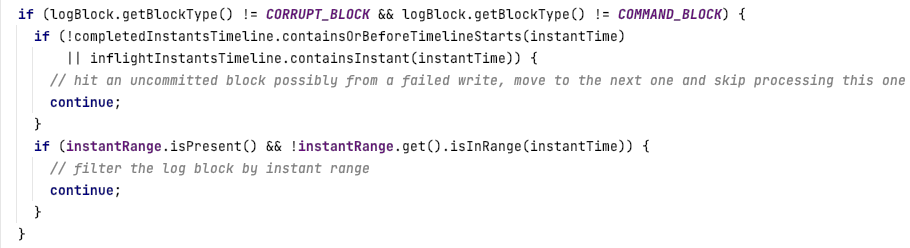

get instant time above should be skipped if skipping here. also, should totalLogBlocks increment? pls confirm
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
hudi-common/src/main/java/org/apache/hudi/common/table/log/CDCLogRecordReader.java
Outdated
Show resolved
Hide resolved
|
@xushiyan have updated this, and solved the comments above. pls review again. |
prasannarajaperumal
left a comment
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
@YannByron - Thanks for making the implementation changes. I made an initial pass and suggested some changes.
I really would like this PR to be split into 2 parts
- All changes related to writing the CDC log blocks, We will try to land this first. When I enable CDC and set a logging mode - the CDC data is written but its not queryable yet.
- Changes related to constructing the CDC stream (Identifying cdc splits)
Doing 1 as the first step will make the abstractions we want to have clear in the writing path. For e.g. I am not too convinced about moving the log writer code into HoodieMergeHandle, I am still thinking what an alternative here would be.
Lets please split this PR and we can discuss more there.
Does that make sense? @YannByron
cc fyi @xushiyan @vinothchandar @yihua
| protected HoodieLogFormat.Writer cdcWriter; | ||
| // the cdc data | ||
| protected Map<String, SerializableRecord> cdcData; | ||
| // |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Nit: doc missing
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
yep, miss it.
| import static org.apache.hudi.common.table.timeline.HoodieTimeline.isInRange; | ||
| import static org.apache.hudi.common.table.timeline.HoodieTimeline.REPLACE_COMMIT_ACTION; | ||
|
|
||
| public class CDCExtractor { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Please add Java doc
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
ok
hudi-common/src/main/java/org/apache/hudi/common/model/HoodieCommitMetadata.java
Show resolved
Hide resolved
| if (StringUtils.isNullOrEmpty(writeStat.getCdcPath())) { | ||
| // no cdc log files can be used directly. we reuse the existing data file to retrieve the change data. | ||
| String path = writeStat.getPath(); | ||
| if (path.endsWith(HoodieFileFormat.PARQUET.getFileExtension())) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Not extensible to other file types
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
let me upgrade this to support other base file types.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
to support other base file types like orc in spark is blocked by https://issues.apache.org/jira/browse/HUDI-4496.
|
@prasannarajaperumal Thank you for reviewing this pr. maybe I prefer to one single pr. i think these changes are easy to judgement which related to write or read. and one pr is better to run the whole process tests.
One key reason that put the log writer code in |
hudi-client/hudi-client-common/src/main/java/org/apache/hudi/io/HoodieMergeHandle.java
Outdated
Show resolved
Hide resolved
| GenericRecord oldRecord, GenericRecord newRecord) { | ||
| GenericData.Record record; | ||
| if (cdcSupplementalLoggingMode.equals(HoodieTableConfig.CDC_SUPPLEMENTAL_LOGGING_MODE_WITH_BEFORE_AFTER)) { | ||
| record = CDCUtils.cdcRecord(operation.getValue(), instantTime, |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
can we prefix classes with Hoodie? like HoodieCDCUtils , which is the convention in the codebase
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
done.
| protected Option<AppendResult> writeCDCData() { | ||
| if (!cdcEnabled || cdcData.isEmpty() || recordsWritten == 0L || (recordsWritten == insertRecordsWritten)) { | ||
| // the following cases where we do not need to write out the cdc file: | ||
| // case 1: all the data from the previous file slice are deleted. and no new data is inserted; | ||
| // case 2: all the data are new-coming, | ||
| return Option.empty(); | ||
| } |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
can we encapsulate CDC writer logic within dedicated CDC writer as much as possible? the concern here is we don't want to spread the condition checkings across different classes, which would be hard to maintain, in case any of these assumption changed in future. Grouping all the CDC logic together really helps with evolving/maintenance in future
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
see: #5885 (comment)
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
If inheritance hierarchy is complicated, lets us not do that. Instead can we create a HoodieCDCLogger as a helper class and move all code related to writing CDC data into this abstraction. You can just initialize a HoodieCDCLogger from HoodieMergeHandle?
Would that work?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
I think that should work. I will do this asap.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Second that: CDC is non-trivial logic that will be proliferated across Writing Handles, therefore we should encapsulate its state along w/ well-defined API w/in single component
hudi-client/hudi-client-common/src/main/java/org/apache/hudi/io/HoodieSortedMergeHandle.java
Show resolved
Hide resolved
| this.keyField = config.populateMetaFields() ? HoodieRecord.RECORD_KEY_METADATA_FIELD | ||
| : hoodieTable.getMetaClient().getTableConfig().getRecordKeyFieldProp(); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
this could be multiple keys that user configured. we might need a keyFields as a list
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
done.
hudi-common/src/main/java/org/apache/hudi/common/table/log/CDCLogRecordReader.java
Outdated
Show resolved
Hide resolved
hudi-common/src/main/java/org/apache/hudi/common/table/log/block/HoodieCDCDataBlock.java
Outdated
Show resolved
Hide resolved
| public List<HoodieInstant> getInstantsAsList() { | ||
| return instants; |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
should have a clean up ticket to call this getInstants and the other getInstantsAsStream. Public API names should not cause confusion
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
agree.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Where's this method used? Can't find any usage
hudi-common/src/main/java/org/apache/hudi/common/table/timeline/HoodieTimeline.java
Outdated
Show resolved
Hide resolved
| reusableRecordBuilder.build() | ||
| } | ||
|
|
||
| private def getPartitionPath(split: HoodieMergeOnReadFileSplit): Path = { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
can you clarify this big chunk of code removal? a result of refactoring? if that's the case, let's keep change minimal for CDC-related. try to achieve the same functionalities without moving code around. note that there can be other refactoring work going on around this and conflicts can be tricky
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
HoodieCDCRDD need to use LogFileIterator and RecordMergingFileIterator to extract the cdc data from the log files of MOR tables. So I just extend the arguments of the construct method to let them can be reused and move them to the common place. That's all.
afde1d3 to
2de30cf
Compare
|
@xushiyan @prasannarajaperumal update pr to solve the comments above. please continue to review, thanks. |
|
@hudi-bot run azure |
2de30cf to
6bbe3fb
Compare
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
I made a pass. Looks good to me except for a small abstraction comment. Let us make sure we create jiras for all follow up work and leave a TODO comment in code. This is a big feature and thanks for driving this.
| protected Option<AppendResult> writeCDCData() { | ||
| if (!cdcEnabled || cdcData.isEmpty() || recordsWritten == 0L || (recordsWritten == insertRecordsWritten)) { | ||
| // the following cases where we do not need to write out the cdc file: | ||
| // case 1: all the data from the previous file slice are deleted. and no new data is inserted; | ||
| // case 2: all the data are new-coming, | ||
| return Option.empty(); | ||
| } |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
If inheritance hierarchy is complicated, lets us not do that. Instead can we create a HoodieCDCLogger as a helper class and move all code related to writing CDC data into this abstraction. You can just initialize a HoodieCDCLogger from HoodieMergeHandle?
Would that work?
hudi-common/src/main/java/org/apache/hudi/common/model/HoodieCommitMetadata.java
Show resolved
Hide resolved
| return writeRecord(hoodieRecord, indexedRecord, isDelete); | ||
| boolean result = writeRecord(hoodieRecord, indexedRecord, isDelete); | ||
| if (cdcEnabled) { | ||
| String recordKey = StringUtils.join( |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
This might not be matching the record key. We should be using proper record-key in here.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
this is a custom key just for cdc when there is more that one record key which users provide.
and this key will be parsed and used in HoodieCDCRDD.
| protected HoodieFileWriter<IndexedRecord> fileWriter; | ||
| // a flag that indicate whether allow the change data to write out a cdc log file. | ||
| protected boolean cdcEnabled = false; | ||
| protected String cdcSupplementalLoggingMode; |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Why is this a String?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
do you suggest that should use an enum?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Was reviewing this before i caught up w/ an updated version of the RFC so got confused.
Yeah, let's use enum for this one
| return new SerializableRecord(record); | ||
| } | ||
|
|
||
| protected GenericRecord addCommitMetadata(GenericRecord record, String recordKey, String partitionPath) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Why are we adding the metadata to CDC payload?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
if the before value or after value is persisted in CDC Block, we want to make the cdc record with the all fields.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Meta fields carry purely semantical information related to their persistence by Hudi.
These aren't the part of the record's payload and we shouldn't be carrying them w/in CDC payload.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
that makes sense. so we don't add the meta fields in it, and should remove meta fields from the old record. has updated in this pr and the separate writing-related pr.
| protected Option<AppendResult> writeCDCData() { | ||
| if (!cdcEnabled || cdcData.isEmpty() || recordsWritten == 0L || (recordsWritten == insertRecordsWritten)) { | ||
| // the following cases where we do not need to write out the cdc file: | ||
| // case 1: all the data from the previous file slice are deleted. and no new data is inserted; | ||
| // case 2: all the data are new-coming, | ||
| return Option.empty(); | ||
| } |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Second that: CDC is non-trivial logic that will be proliferated across Writing Handles, therefore we should encapsulate its state along w/ well-defined API w/in single component
| : hoodieTable.getMetaClient().getTableConfig().getRecordKeyFieldProp(); | ||
| Map<HoodieLogBlock.HeaderMetadataType, String> header = new HashMap<>(); | ||
| header.put(HoodieLogBlock.HeaderMetadataType.INSTANT_TIME, instantTime); | ||
| if (cdcSupplementalLoggingMode.equals(HoodieTableConfig.CDC_SUPPLEMENTAL_LOGGING_MODE_WITH_BEFORE_AFTER)) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Let's abstract this conditional as a method (i believe you already have one below)
| .withFs(fs) | ||
| .withRolloverLogWriteToken(writeToken) | ||
| .withLogWriteToken(logWriteToken) | ||
| .withFileExtension(HoodieLogFile.DELTA_EXTENSION).build(); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Are we mixing CDCBlocks w/ normal Delta Data Blocks?
I don't think we can do that as this will severely affect performance for pure non-CDC queries for MOR tables
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
the cdc log file with CDCBlock is a normal log file, same with others. But when read mor in non-cdc mode, we will skip the cdc block directly only with the cost of reading the first few bytes from InputStream of the log files.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
So one of the pre-requisites of the CDC is:
- When we're issuing normal Data query (and not a CDC one), there should be no performance impact to it
Moreover, we should clearly disambiguate the CDC infra from the Data infra w/o the need to even fetch the first block of the file (we can still use the same Log format, but we should definitely create separate naming scheme for CDC Log files to not mix these up w/ the Data Delta Log files)
6bbe3fb to
621d2bf
Compare
621d2bf to
34088ae
Compare
alexeykudinkin
left a comment
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
@YannByron this is gigantic effort. Thanks for taking this forward!
I'd really like us to split this PR in 2 parts to accelerate our convergence and make sure we can iterate and move forward faster -- it's already 4k LOC and it's quite hard to digest all o it at once, let alone iterate on it.
It seems very natural to me to split it up into
- CDC writing part
- CDC reading part
WDYT?
| if (oldRecord == null) { | ||
| recordKey = hoodieRecord.getRecordKey(); | ||
| } else { | ||
| recordKey = StringUtils.join( |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Please check my previous comment that we have to use proper KeyGen here
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
has fixed this. use KeyGen.
| fileWriter.writeAvroWithMetadata(key, rewriteRecord(avroRecord)); | ||
| } | ||
| if (cdcEnabled) { | ||
| cdcLogger.getAndIncrement(); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
This should not be needed
| * | ||
| * This class wraps [[GenericData.Record]]. | ||
| */ | ||
| public class SerializableRecord implements Serializable { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
This is not going to work -- Avro's Schema is not serializable by Java's default serialization protocol
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
The serialization of external map is done by Kryo here. Is there a Serializer registered for Avro Schema with kyro?. I dont see the test for this with ExternalSpillableMap anymore - @YannByron - Can you check?
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
i will use HoodieAvroPayload as the value type of ExternalSpillableMap. This pr has updated but hasn't remove the SerializableRecord code.
and i am going to split this pr to two according to your suggestion. @alexeykudinkin @prasannarajaperumal
| */ | ||
| public static GenericData.Record cdcRecord( | ||
| String op, String commitTime, GenericRecord before, GenericRecord after) { | ||
| String beforeJsonStr = recordToJson(before); |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Why are we using JSON and not Avro for ex?
| import java.util.function.Function; | ||
| import java.util.stream.Collectors; | ||
|
|
||
| public class HoodieCDCLogger<T extends HoodieRecordPayload> implements Closeable { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
I don't think we need to parameterize this by HoodieRecordPayload
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
yes. updated.
|
|
||
| @Override | ||
| public boolean hasNext() { | ||
| if (null == itr || !itr.hasNext()) { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Let's keep code style consistent (itr == null)
| public List<HoodieInstant> getInstantsAsList() { | ||
| return instants; |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Where's this method used? Can't find any usage
| } | ||
| (shortName(), sqlSchema) | ||
|
|
||
| if (CDCRelation.isCDCTable(metaClient) && |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
isCDCEnabled ("CDCTable" reference is confusing)
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Let's also limit this conditional to fetching schema:
val schema = if (cdc) {
// cdc-schema
} else {
// ...
}
| (shortName(), sqlSchema) | ||
|
|
||
| if (CDCRelation.isCDCTable(metaClient) && | ||
| parameters.get(QUERY_TYPE.key).contains(QUERY_TYPE_INCREMENTAL_OPT_VAL) && |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
We can re-use isCdcQuery
| * @param sqlContext instance of SqlContext. | ||
| */ | ||
| class EmptyRelation(val sqlContext: SQLContext, metaClient: HoodieTableMetaClient) extends BaseRelation with TableScan { | ||
| class EmptyRelation(val sqlContext: SQLContext, metaClient: HoodieTableMetaClient, isCDCQuery: Boolean) extends BaseRelation with TableScan { |
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Instead, let's modify EmptyRelation to accept schema
6fb2368 to
5e320dd
Compare
|
Split into read and write PRs |

Change Logs
This PR is going to support CDC on Spark.
The changes are listed:
cdcPathinHoodieWriteStatto hold the cdc file.HooideMergeHandleand its sub-classes to persist the cdc data to the cdc log file if needed.hudi-commonthat will be used to implement CDCReader for different engines;CDCReaderto response the CDC query on spark.Impact
Low
