HDFS-16333. fix balancer bug when transfer an EC block #3679
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
|
💔 -1 overall
This message was automatically generated. |
liubingxing
force-pushed
the
HDFS-16333
branch
from
3daa567 to
46dbec8
Compare
Contributor
|
@liubingxing can you extend an UT for your scenario |
|
💔 -1 overall
This message was automatically generated. |
liubingxing
force-pushed
the
HDFS-16333
branch
from
46dbec8 to
a6d0012
Compare
|
💔 -1 overall
This message was automatically generated. |
liubingxing
force-pushed
the
HDFS-16333
branch
from
a6d0012 to
e999e87
Compare
|
💔 -1 overall
This message was automatically generated. |
Contributor
Author
@hemanthboyina sorry for the late reply, I add a UT to simulate the balancer with EC file, the excluded node is to simulate the decommissioning node. |
Contributor
Author
|
@hemanthboyina Please take a look at this and give some advice. Thanks a lot |
tasanuma
reviewed
Dec 2, 2021
Member
tasanuma
left a comment
tasanuma
left a comment
There was a problem hiding this comment.
@liubingxing Thanks for reporting the issues and submitting the PR. I reviewed it and left some comments. Please confirm them.
Comment on lines
1688
to
1697
Member
There was a problem hiding this comment.
How about adding another void runBalancer method
private void runBalancer(Configuration conf, long totalUsedSpace,
long totalCapacity, BalancerParameters p, int excludedNodes)
throws Exception {
+ runBalancer(conf, totalUsedSpace, totalCapacity, p, excludedNodes, false);
+ }
+
+ private void runBalancer(Configuration conf, long totalUsedSpace,
+ long totalCapacity, BalancerParameters p, int excludedNodes, boolean checkFailedNum)
+ throws Exception {
waitForHeartBeat(totalUsedSpace, totalCapacity, client, cluster);and just calling it from the unit test?
Suggested change
| final int run = runBalancer(namenodes, pBuilder.build(), conf, true); | |
| if (conf.getInt( | |
| DFSConfigKeys.DFS_DATANODE_BALANCE_MAX_NUM_CONCURRENT_MOVES_KEY, | |
| DFSConfigKeys.DFS_DATANODE_BALANCE_MAX_NUM_CONCURRENT_MOVES_DEFAULT) | |
| == 0) { | |
| assertEquals(ExitStatus.NO_MOVE_PROGRESS.getExitCode(), run); | |
| } else { | |
| assertEquals(ExitStatus.SUCCESS.getExitCode(), run); | |
| } | |
| waitForHeartBeat(totalUsedSpace, totalCapacity, client, cluster); | |
| runBalancer(namenodes, pBuilder.build(), conf, true); |
Contributor
Author
There was a problem hiding this comment.
I updated the UT and calling runBalancer from the unit test.
And I also add a parameter boolean checkExcludeNodesUtilization in waitForBalancer to determine whether to check the nodeUtilization of excluded datanode
DatanodeInfo[] datanodeReport =
client.getDatanodeReport(DatanodeReportType.ALL);
assertEquals(datanodeReport.length, cluster.getDataNodes().size());
balanced = true;
int actualExcludedNodeCount = 0;
for (DatanodeInfo datanode : datanodeReport) {
double nodeUtilization = ((double)datanode.getDfsUsed())
/ datanode.getCapacity();
if (Dispatcher.Util.isExcluded(p.getExcludedNodes(), datanode)) {
if (checkExcludeNodesUtilization) {
assertTrue(nodeUtilization == 0);
}
Member
There was a problem hiding this comment.
Could you please provide more detailed comments on when the locations could be updated and why we need to adjust indices?
Contributor
Author
There was a problem hiding this comment.
I fix the code and add more comments like this.
if (!adjustList.isEmpty()) {
// block.locations mismatch with block.indices
// adjust indices to get correct internalBlock for Datanode in #getInternalBlock
((DBlockStriped) block).adjustIndices(adjustList);
Preconditions.checkArgument(((DBlockStriped) block).indices.length
== block.locations.size());
}
Member
There was a problem hiding this comment.
Please provide comments on what this method does.
Contributor
Author
There was a problem hiding this comment.
add the comments like this.
/**
* Adjust EC block indices，it will remove the element of adjustList from indices.
* @param adjustList the list will be removed from indices
*/
public void adjustIndices(List<Integer> adjustList) {
Member
There was a problem hiding this comment.
I did the unit test multiple times, and sometimes the length of the locatedBlocks is larger than groupSize, and the verification failed. Could you check it?
Contributor
Author
There was a problem hiding this comment.
This is because waitForBalancer not waiting for namenode to delete extra replicas.
I fix the code and check the total block counts before StripedFileTestUtil.verifyLocatedStripedBlocks like this.
// check total blocks, max wait time 60s
long startTime = Time.monotonicNow();
int count = 0;
while (count < 20) {
count++;
DatanodeInfo[] datanodeReport1 = client.getDatanodeReport(DatanodeReportType.ALL);
long totalBlocksAfterBalancer = 0;
for (DatanodeInfo dn : datanodeReport1) {
totalBlocksAfterBalancer += dn.getNumBlocks();
}
if (totalBlocks == totalBlocksAfterBalancer) {
System.out.println("wait " + (Time.monotonicNow() - startTime) + "ms to check blocks, count " + count);
break;
}
cluster.triggerHeartbeats();
Thread.sleep(3000L);
}
// verify locations of striped blocks
locatedBlocks = client.getBlockLocations(fileName, 0, fileLen);
StripedFileTestUtil.verifyLocatedStripedBlocks(locatedBlocks, groupSize);
Member
There was a problem hiding this comment.
It makes sense. How about using GenericTestUtils#waitFor for checking it?
Contributor
Author
|
@tasanuma Thank you for your review and comments. I run the UT Therefore, it is not good to use |
Member
|
One possible solution is to add Preconditions.checkArgument that checks that the length of the indices is equal to the size of the block location, and to check that ExitStatus is SUCCESS in the unit test. if (blkLocs instanceof StripedBlockWithLocations) {
// adjust indices if locations has been updated
((DBlockStriped) block).adjustIndices(adjustList);
Preconditions.checkArgument(((DBlockStriped) block).indices.length
== block.locations.size());
} |
liubingxing
force-pushed
the
HDFS-16333
branch
from
e999e87 to
1d6f9e6
Compare
Contributor
Author
|
@tasanuma Thank you for your advice and I fix the code and according to your suggestion. Please take a look. |
|
🎊 +1 overall
This message was automatically generated. |
liubingxing
force-pushed
the
HDFS-16333
branch
from
1d6f9e6 to
ed3a77c
Compare
tasanuma
reviewed
Dec 8, 2021
Member
tasanuma
left a comment
tasanuma
left a comment
There was a problem hiding this comment.
@liubingxing Thanks for updating PR. I left some comments. Would you please confirm them?
Member
There was a problem hiding this comment.
Could you move testBalancerWithExcludeListWithStripedFile() and doTestBalancerWithExcludeListWithStripedFile () after doTestBalancerWithStripedFile?
Member
There was a problem hiding this comment.
It makes sense. How about using GenericTestUtils#waitFor for checking it?
Member
There was a problem hiding this comment.
As Preconditions.checkArgument() can throw IllegalArgumentException, getBlockList() should declares it, and dispatchBlocks() should catch the exception.
- private long getBlockList() throws IOException {
+ private long getBlockList() throws IOException, IllegalArgumentException { try {
final long received = getBlockList();
if (received == 0) {
return;
}
blocksToReceive -= received;
continue;
- } catch (IOException e) {
+ } catch (IOException|IllegalArgumentException e) {
LOG.warn("Exception while getting reportedBlock list", e);
return;
}
|
💔 -1 overall
This message was automatically generated. |
liubingxing
force-pushed
the
HDFS-16333
branch
from
ed3a77c to
15a3fbd
Compare
Member
|
Thanks for updating it. +1, pending Jenkins. |
Contributor
Author
|
@tasanuma Thanks for your review. |
|
💔 -1 overall
This message was automatically generated. |
Contributor
Author
|
The failed unit tests is not related to this PR |
tasanuma
approved these changes
Dec 9, 2021
Member
|
Merged into trunk. Thanks for your contribution, @liubingxing! |
tasanuma
pushed a commit
that referenced
this pull request
Dec 9, 2021
(cherry picked from commit 35556ea)
tasanuma
pushed a commit
that referenced
this pull request
Dec 9, 2021
(cherry picked from commit 35556ea)
Contributor
Author
|
@tasanuma Thanks for your review and merge. |
Member
|
After cherry-picking into branch-3.3, the build of branch-3.3 fails with the following error. So I reverted it for now. @liubingxing It seems TestBalancer doesn't import |
sunchao
pushed a commit
that referenced
this pull request
Jan 4, 2022
(cherry picked from commit 35556ea)
HarshitGupta11
pushed a commit
to HarshitGupta11/hadoop
that referenced
this pull request
Nov 28, 2022
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
4 participants
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
JIRA: HDFS-16333
We set the EC policy to (6+3) and we also have nodes that were decommissioning when we executed balancer.

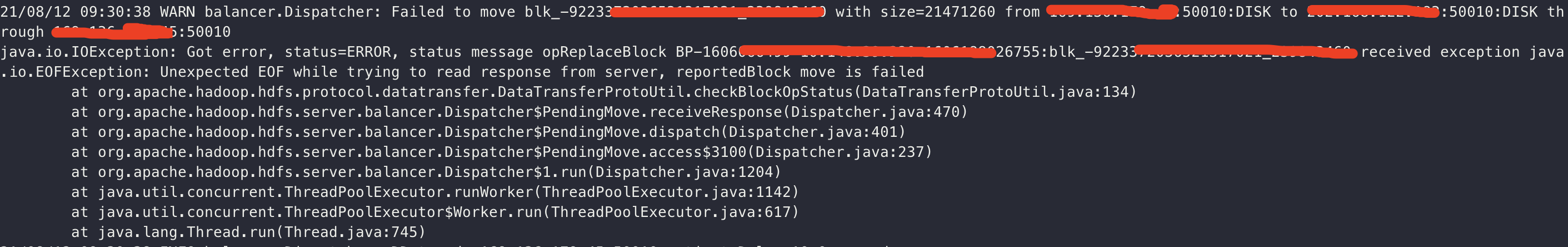

With the balancer running, we find many error logs as follow.

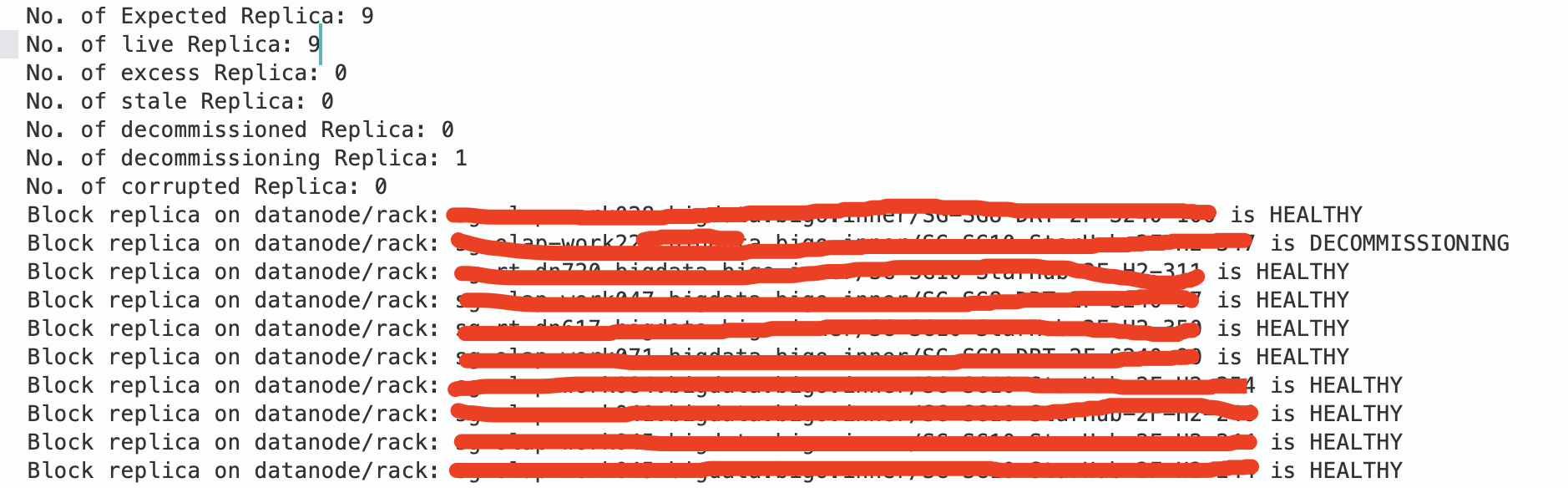

Node A wants to transfer an EC block to node B, but we found that the block is not on node A. The FSCK command to show the block status as follow

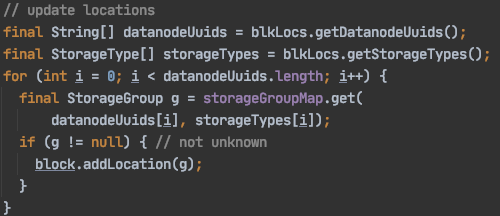

In the dispatcher. getBlockList function
Assume that the location of the an EC block in storageGroupMap look like this
indices:[0, 1, 2, 3, 4, 5, 6, 7, 8]
node:[a, b, c, d, e, f, g, h, i]
after decommission operation, the internal block on indices[1] were decommission to another node.
indices:[0, 1, 2, 3, 4, 5, 6, 7, 8]
node:[a, j, c, d, e, f, g, h, i]
the location of indices[1] change from node b to node j.
When the balancer get the block location and check it with the location in storageGroupMap.
If a node is not found in storageGroupMap, it will not be add to block locations.
In this case, node j will not be added to the block locations, while the indices is not updated.
Finally, the block location may look like this,
indices:[0, 1, 2, 3, 4, 5, 6, 7, 8]
block.location:[a, c, d, e, f, g, h, i]
the location of the nodes does not match their indices
Solution:
we should update the indices and match with the nodes
indices:[0, 2, 3, 4, 5, 6, 7, 8]
block.location:[a, c, d, e, f, g, h, i]
