can't configure different Thresholds directions (Ok > Warn > Critical) for different mapping rules

[arnitolog]

Hello,
I'm trying to configure different thresholds directions (Ok > Warn > Critical) for different mapping rules. But seems like they apply globally for all available mappings.

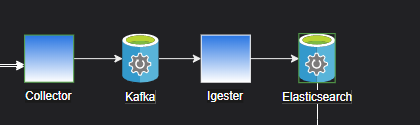

Here what I have:

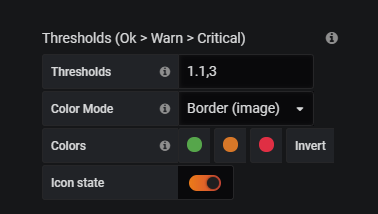

-an existing mapping for Elasticsearch

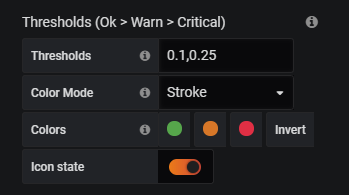

• an existing mapping for another system component:

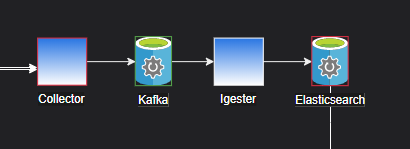

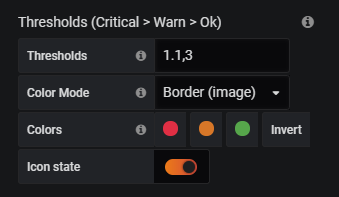

  And when I tried to add the third component (Kafka) with the opposite threshold direction (Critical > Warn > Ok), the first two changed their color to red:


is it a bug, or am I doing something wrong?

[algenty]

Hi @arnitolog
Thx for this feedback.
Stroke and fill works only for drawio shapes, for pictures use border.
If in xml, you see base64 or an url, it's a picture otherwise it's a shape
See that :
https://github.com/algenty/flowcharting-repository/blob/master/images/colormode_ani.png?raw=true

[arnitolog]

@algenty what I'm trying to do is just configure different directions for thresholds. I click on Invert button for one of the rules. And seems like it affects all existing rules

[algenty]

ok, it's maybe a bug, when you clone rules, can you try to create rule without clone options ?

[arnitolog]

yeah, the new one works for me thanks a lot. This is really cool plugin. Thank you very much

[algenty]

you're welcome, i'll try this bug this week to fix it

[algenty]

Ok, can reproduce bug, i'll fix it

[algenty]

Can you try 0.7.0 snapshot in https://algenty.github.io/flowcharting-repository/ARCHIVES.html

[arnitolog]

looks good to me. Thank you
