Deprecate 'id' instructions on IBM Quantum hardware backends.

[kdk]

Summary

Updates IBMBackend.run to inspect submitted circuits for instructions containing 'id'.

• If 'id' is still reported in the device's basis_gates, only a DeprecationWarning is raised.
• If neither 'id' nor 'delay' are reported as supported by the device, a DeprecationWarning is raised.
• If 'id' is no longer reported in the device's basis_gates and 'delay' is reported in the device's supported_instruction, a DeprecationWarning is raised and any 'id' instructions are replaced with their equivalent ('sx'-length) 'delay' instructions.

Details and comments

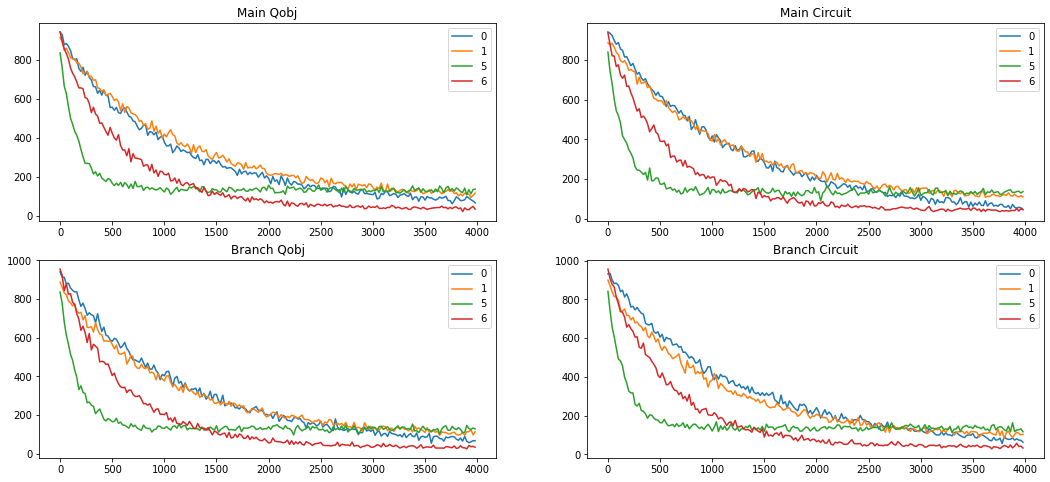

As an example, run a 'id'-based T1 experiment on ibmq_16_melbourne (the only device active device different length 'sx' gates on different qubits) from main and PR branch (forcing 'id'->'delay' conversion):

>>> id_qcs = []
>>> for n in range(200):
...    qc = qk.QuantumCircuit(7,4)
...    qc.x([0,1,5,6])
...    for _ in range(n):
...        for __ in range(20):
...            qc.id([0,1,5,6])
...    qc.measure([0,1,5,6],[0,1,2,3])
...    id_qcs.append(qc)
...
>>> melbourne = provider.get_backend('ibmq_16_melbourne')
>>> id_tqcs = qk.transpile(id_qcs, melbourne, optimization_level=0)
>>> id_qobj = qk.assemble(id_tqcs)
>>>
>>>job_qobj = melbourne.run(id_qobj)
>>>job_circ = melbourne.run(id_tqcs)

For reference, compare PR and main branch performance of backend.run(...) for id_qobj, id_tqcs (up to 15,920 'id' gates) and x_qobj, x_tqcs (as above, but replace all 'id' gates with 'x' gates to isolate worst-case performance of 'scan-for-'id'). N.B. These are single-shot runtime readings.

Runtime comparison of backend.run(...):

	Main backend.run(qc)	PR Branch backend.run(qc)	Main backend.run(Qobj)	PR backend.run(Qobj)
'id'	3m55s	3m57s	2m23s	2m33s
'x'	4m15s	3m59s	2m16	2m45s

Isolate overhead of backend._deprecate_id_instructions(...):

Function call	Runtime
backend._deprecate_id_instructions(id_tqcs)	2.09s
backend._deprecate_id_instructions(x_tqcs)	1.64s
backend._deprecate_id_instructions(id_qobj)	812ms
backend._deprecate_id_instructions(x_qobj)	440ms

[nonhermitian]

I am curious as to why we need this here? Shouldn't the transpiler know to convert an id into a delay? I see that it currently does not, e.g.

qc = QuantumCircuit(1)
qc.id(0)
transpile(qc, basis_gates=['reset'])

fails

QiskitError: "Cannot unroll the circuit to the given basis, ['reset']. Instruction id not found in equivalence library and no rule found to expand."

If it did then there probably wouldn't need to be these gymnastics right?

[kdk]

Agree that the transpiler is a better place for these kinds of transformations in general. However, the behavior that's being deprecated here ('id' as an implicit 'delay') is specific to IBM Quantum hardware backends (there are providers with backends which implement 'id' as a no-op which we wouldn't want to affect).

We've floated the idea in the past of providers being able to supply transpiler passes to the transpiler to handle backend or provider specific transformations or optimizations. Having this done currently by the provider was chosen because it was more inline with the ownership of those designs than the alternative (a transpiler pass which gates on backend.name().startswith('ibmq')).

[nonhermitian]

Yeah but isn't unrolling always a backend specific task? Here you just need a rule to map a id to a delay. There would just need to be a placeholder value that the backend can populate (nominally in the transpiler pass itself) based on what it says a default delay should equal. Since a delay gate is a QASM3 native gate I would assume the id to delay mapping would be needed across other system vendors at some point as well.

[kdk]

This case is slightly more complicated than unrolling because the IBM backends have a unique definition of 'id' (so I would expect we explicitly wouldn't need a pass like this across other system vendors).

While we do have a standardized interface across providers to report which instructions the device natively supports, we don't have a standardized interface to describe deprecation, removal or change of behavior for instructions, so this is for now handled by the provider.

[ajavadia]

While backend.run() is equipped to handle the different combinations of id/delay being present/absent, wouldn't we hit a transpiler error before we even get to backend.run()?
i.e. this line in your code:
qk.transpile(id_qcs, melbourne, optimization_level=0)
will raise if melbourne stops reporting id in basis gates.

[kdk]

While backend.run() is equipped to handle the different combinations of id/delay being present/absent, wouldn't we hit a transpiler error before we even get to backend.run()?
i.e. this line in your code:
qk.transpile(id_qcs, melbourne, optimization_level=0)
will raise if melbourne stops reporting id in basis gates.

You're right, I had mistakenly thought 'id' was a basis_instr (but it isn't). A few possible workarounds:

1. Begin warning and replacing 'id' instructions immediately (instead of waiting until 'id' is removed from basis_gates) until device support is removed, at which point jobs will fail at transpile.
2. Have the provider artificially add 'id' back into basis_gates once removed from the backend, for as long as this conversion needs to be supported.
3. Allow the provider to supply this as a pass to the transpiler, to be run before translation (maybe as part of Implement next version of the provider interface qiskit#5894 ).

[ajavadia]

I vote for 1.

[kdk]

I vote for 1.

Updated to 1 in 0e2c588.

[jyu00]

The warnings on line 797 and 803 say id is being replaced by delay, but that's not true if delay is not reported as supported by the backend? And can people use delay if it's not reported?

[kdk]

Good point, I moved the if not delay_support: early exit earlier in the function, so the warning and 'id' search aren't performed if the device doesn't support 'delay'.

[jyu00]

LGTM! @ajavadia I'm going to merge this if you're good with it too.

[ajavadia]

LGTM
