LG-6785: Upgrade Acuant SDK to 11.7.0 by eric-gade · Pull Request #6649 · 18F/identity-idp

eric-gade · 2022-07-28T16:27:33Z

What

This PR implements an upgrade from Acuant SDK 11.5.0 to 11.7.0, per LG-6785.

Implementation

Because we host the sdk files ourselves, upgrading was simply a matter of creating a new version directory, copying the release files to that location, and updating two internal URLs to point to the new resources.

Most of this PR deals with adjusting our own code in order to accommodate breaking changes introduced.

Important Notes and Breaking Changes

`window` and globally scoped objects

In previous versions of the SDK, key objects like AcuantJavascriptWebSdk, AcuantCamera, and AcuantCameraUI were all attached to the browser's global window object whenever they were respectively loaded.

In 11.7.0, this is no longer the case -- these objects are injected into the browser's global scope, but not added to the window object. This introduced three breaking difficulties: where to "find" the correct resources; the assumptions of our frontend test suite; and the assumptions of our type annotations.

Instead of heavily rewriting all of our tests -- or manually editing the SDK files ourselves (an option which I threw out but am still open to) -- we instead use helper functions to determine which version of the object is available (ie, window.AcuantCamera or just AcuantCamera) in scope, and then intentionally set window.AcuantCamera to the resulting value. This protects our test suite most of all, and keeps many of the assumptions in place.

I am open to alternative suggestions if anyone has any.

Introduction of `BIG_DOCUMENT` state

Following the Acuant SDK Migration Guide, 11.7.0 introduces a new live document state called BIG_DOCUMENT, which simply means that the document image in the frame is "Too close".

This has been added and also localized.

changelog: Improvements, Upgrade, Acuant Javascript SDK Upgrade to 11.7.0

aduth · 2022-07-28T16:59:47Z

app/javascript/packages/document-capture/context/acuant.tsx

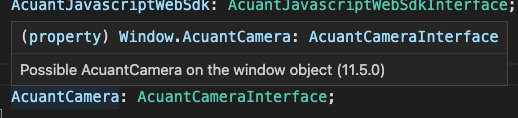

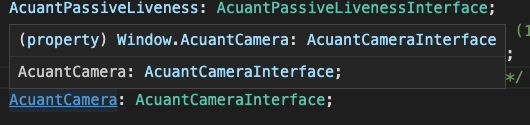

Instead of these two inline comment syntaxes, I might suggest using the multi-line docblock syntax, because it's the only one which is picked up by VSCode (and possibly others) for Intellisense descriptions.

Before After

Suggested change

/* Possible AcuantCamera on the window object (11.5.0) */

AcuantCamera: AcuantCameraInterface;

}

}

interface AcuantContextProviderProps {

sdkSrc: string; // SDK source URL.

/**

* Possible AcuantCamera on the window object (11.5.0)

*/

AcuantCamera: AcuantCameraInterface;

}

}

interface AcuantContextProviderProps {

/**

* SDK source URL.

*/

sdkSrc: string;

Would it also be helpful to convert other kinds of one-liner comment blocks that are describing reasoning in the code, or do you only want docblock for attribute and function comments? Here is an example of what I mean by the former.

(Am not a VSCode user, so I don't see it)

I'm not as concerned about those, and in fact may prefer to keep it as-is, since that's more describing the general flow of logic than any one single thing.

Updated in b563c26

aduth · 2022-07-28T17:01:12Z

app/javascript/packages/document-capture/context/acuant.tsx

This generic isn't working the way you might be expecting in assigning types of the arguments.

Suggested change

function AcuantContextProvider<AcuantContextProviderProps>({

sdkSrc = '/acuant/11.7.0/AcuantJavascriptWebSdk.min.js',

cameraSrc = '/acuant/11.7.0/AcuantCamera.min.js',

credentials = null,

endpoint = null,

glareThreshold = DEFAULT_ACCEPTABLE_GLARE_SCORE,

sharpnessThreshold = DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,

children,

}) {

function AcuantContextProvider({

sdkSrc = '/acuant/11.7.0/AcuantJavascriptWebSdk.min.js',

cameraSrc = '/acuant/11.7.0/AcuantCamera.min.js',

credentials = null,

endpoint = null,

glareThreshold = DEFAULT_ACCEPTABLE_GLARE_SCORE,

sharpnessThreshold = DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,

children,

}: AcuantContextProviderProps) {

Updated in b563c26

aduth · 2022-07-28T17:08:25Z

app/javascript/packages/document-capture/context/acuant.tsx

If the scripts failed to load for some reason, trying to access the global this way could throw an error. I'm not sure if that's too much of a problem if we're likely already throwing errors anyways in this circumstance, but it might be good to add a guard to be safe.

Suggested change

return AcuantJavascriptWebSdk;

if (typeof AcuantJavascriptWebSdk !== 'undefined') {

return AcuantJavascriptWebSdk;

}

Updated in b563c26

aduth · 2022-07-28T17:09:35Z

app/javascript/packages/document-capture/context/acuant.tsx

These /** @type */ annotations behave like a type-cast, but they don't work in .tsx files.

The equivalent is...

Suggested change

isCameraSupported: /** @type {boolean?} */ null,

isActive: false,

setIsActive: () => {},

credentials: null,

glareThreshold: DEFAULT_ACCEPTABLE_GLARE_SCORE,

sharpnessThreshold: DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,

endpoint: /** @type {string?} */ null,

isCameraSupported: null as boolean | null,

isActive: false,

setIsActive: () => {},

credentials: null,

glareThreshold: DEFAULT_ACCEPTABLE_GLARE_SCORE,

sharpnessThreshold: DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,

endpoint: null as string | null,

Updated in b563c26

app/javascript/packages/document-capture/components/acuant-camera.jsx

aduth · 2022-07-28T19:43:01Z

spec/javascripts/packages/document-capture/components/acuant-sdk-spec.js

Could you explain what this after block is used for?

I had planned to add a subsequent test block for the 11.5.0 cases (for which the DOM would need to be reset). However, it became unclear as to whether or not we would persist the 11.5.0 sdk in the repository going forward. What do you think, should I add the cases or just remove this?

I could see some minimal value in making sure that it works for the 2 versions we'll have at the initial launch, but I think we'll want to plan to follow-up this pull request with an immediate removal of v11.5.0, to be merged for the production launch following this one. With that in mind, I don't think it's too important to have specs for the version we'll be removing.

Edit: tl;dr Remove it

aduth · 2022-07-28T20:28:05Z

spec/javascripts/packages/document-capture/components/acuant-sdk-spec.js

Can we remove the commented code.

Suggested change

//scriptEl.textContent = scriptContent;

aduth · 2022-07-28T20:29:28Z

spec/javascripts/packages/document-capture/components/acuant-sdk-spec.js

I could see some minimal value in making sure that it works for the 2 versions we'll have at the initial launch, but I think we'll want to plan to follow-up this pull request with an immediate removal of v11.5.0, to be merged for the production launch following this one. With that in mind, I don't think it's too important to have specs for the version we'll be removing.

Edit: tl;dr Remove it

-- What The new 11.7.0 sdk adds a property to the AcuantDocumentState called `BIG_DOCUMENT`, which is an indication that the image is too close to the document. Note also that the enum values have changed as a result. This is described in the migration doc: https://github.com/Acuant/JavascriptWebSDKV11/blob/master/docs/MigrationDetails.md changelog: Improvement, SDK, Updating Acuant SDK to 11.7.0 (LG-6785)

-- What There appears to be some difference in how the 11.7 and 11.5 SDKs load the AcuantJavascriptWebSdk object into the browser's global namespace once the script tag has been loaded and `loadAcuantSdk` has been called. I wrote a s few tests that confirm the behavior I was seeing in my personal browser interactions and debugging sessions. changelog: Improvement, SDK, Updating Acuant SDK to 11.7.0 (LG-6785)

-- What In a previous (11.5.0) version of the SDK, objects like AcuantJavascriptWebSdk and AcuantCamera were placed onto the browser's global window object. But in the new (11.7.0) SDK, they are no longer present on window -- instead, they reside alone in the global namespace via `let` declarations at the highest scope. This commit represents elementary changes to two files that reference these objects in the global namspace, rather than on window where they don't exist anymore (and were therefore erroring). The type annotations still need to be dealt with appropriately. However, the acuant sdk now loads and appears to work properly in the local manual testing environment. changelog: Improvements, SDK update, Updating the Acuant SDK

-- What The new Acuant SDK image warning BIG_DOCUMENT, which specifies that the camera is "too close" to the document, has messages that have now been localized into French and Spanish, as well as the original English.

-- What Because of the discrepancy between the 11.5.x and 11.7.x SDKs in how they declare globals like AcuantJavascriptWebSdk and AcuantCameraUI, I have now included a check in the acuant.jsx context file that will try to find those objects on the global window object and, if not present, simply return the result of using those variables at the global scope (which is how 11.7.x defines them). The benefit of this approach is that we don't have to rewrite or edit a bunch of the frontend tests. changelog: Improvements, Acuant SDK upgrade, dealing with variable declarations

-- What We were checking for the AcuantCamera and AcuantCameraUI objects at the wrong moment in the flow, which was causing errors when attempting to load the actual camera. This is now resolved. changelog: Improvements, SDK upgrade, fixing remaining global variable issues

-- What - Switching property and function description comments to use docblock format, which is better for VSCode users; - Adding guards to global Acuant SDK variable getter methods - Removing leftover type annotations from acuant.tsx file changelog: Improvements, Formatting, Acuant SDK upgrade comment formatting and guards

…era.jsx Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov>

eric-gade · 2022-07-29T15:38:42Z

There appears to be a symlink of public/fr/ to public and that is causing some interesting issues when I'm trying to exclude public/acuant/ from the code climate checks:

aduth · 2022-07-29T15:53:03Z

Hm, I thought those symlinks weren't necessary anymore since #5578 🤔

eric-gade · 2022-07-29T16:38:49Z

Maybe it just got left in there by accident? I'll take it out and see what shakes

-- Notes I have included an ignore line in acuant-camera.jsx where we refer to the global AcuantCameraUI without first declaring it. This is due to the new behavior Acuant introduced in the 11.7.0 SDK, where they are declaring variables in the global scope (but not in the window)

-- What Several problems swirled together in the type system that necessitated refactoring the acuant-camera component to be a tsx/typescript file. First, the typechecker could not handle an undefined global AcuantCameraUI reference, and the JSDoc type annotations seem to not have a way to deal with this while plain typescript does. Second, the change to using a guard clause for trying to reason about the presence of the global variable also threw off the typechecker. In this commit we've opted for a different approach, which is to simply log the condition where neither the window nor the global namespace has a reference to the importan Acuant globals when they are needed (AcuantJavascriptWebSdk, AcuantCamera, etc). This might not be the ideal choice, but for the moment it beats fighting with the typechecker.

aduth · 2022-08-01T17:07:58Z

There are some migration details in the 11.6.0 release regarding a <meta> tag. Do we need that? I really, really would prefer avoiding that change if possible because it's a severe accessibility issue (related resource).

aduth · 2022-08-01T15:57:55Z

app/javascript/packages/document-capture/components/acuant-camera.tsx

+export type {
+  AcuantSuccessResponse,
+  AcuantDocumentType,
+  AcuantGlobal, // fill this in


Should this comment still be here?

What do you think about exporting these named exports where they're defined? I don't have a strong feeling one way or the other, but conventionally only the default exports are exported toward the bottom of the file (and even those could be exported inline if we wanted).

e.g.

export type AcuantSuccessCallback = (response: AcuantSuccessResponse) => void;

In the past I've put them all at the bottom just to see what gets exported all in one place, but I too don't have strong opinion. It seems the method you've recommended is already used elsewhere so let's stick to that.

Yeah, I can see how that's a reasonable approach to help identify the exports. Personally, I've probably come to rely on VSCode's import autocomplete to surface the exports at the time I'm trying to import them.

I think there's a case to be made about grouping them, though I agree it should be done consistently, and this seems like a good change for now in favor of "consistency for consistency's sake".

app/javascript/packages/document-capture/components/acuant-camera.tsx

…era.tsx Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov>

eric-gade · 2022-08-01T17:45:34Z

There are some migration details in the 11.6.0 release regarding a <meta> tag. Do we need that? I really, really would prefer avoiding that change if possible because it's a severe accessibility issue (related resource).

I, too, thought their suggestion was draconian, so I decided to wait and see if the problem they sort of describe even shows up. It didn't seem to on my test iPhone but I will double check my Android as well.

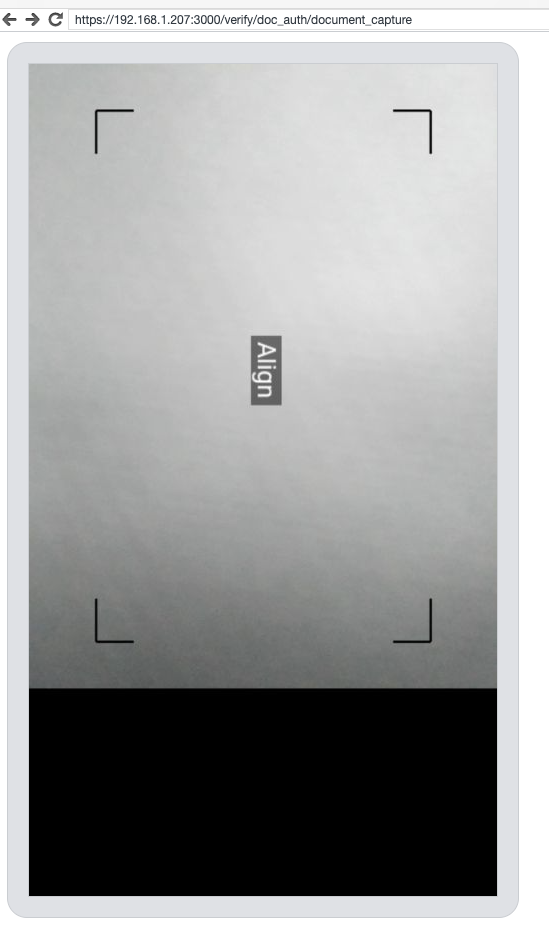

@aduth It does look like there might be something odd going on with Android, but it's not quite what they are describing. Rather than the scaling getting wonky after returning from the acuant camera, the acuant camera itself does not fill up the screen (space on the bottom):

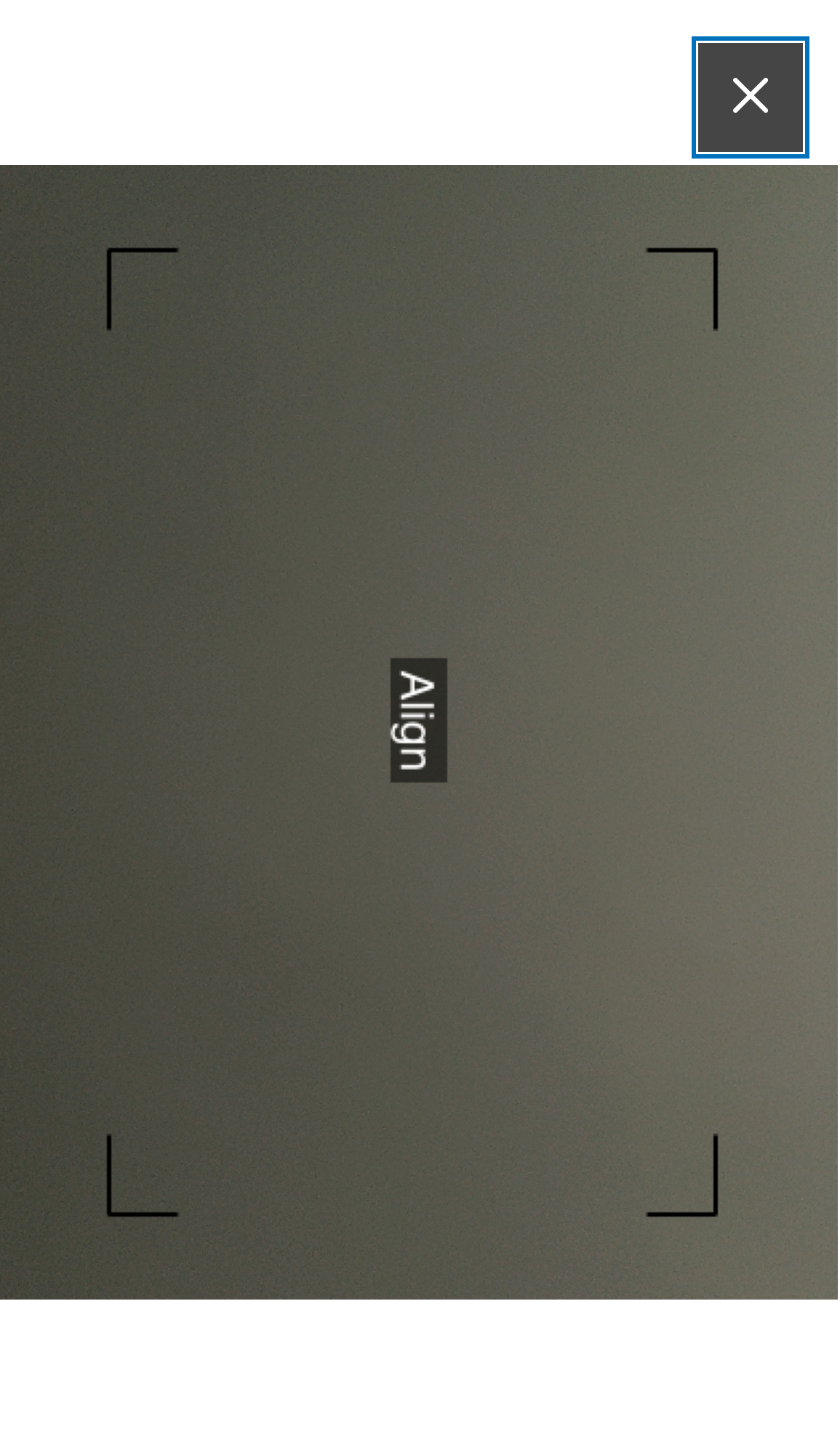

For reference, here is what the iPhone version looks like (white space on top and bottom, camera view in center):

I'm not sure if these are relevant to the change they are requesting.

It's worth noting that even when I update the meta tag as they specify in the migration doc, the frames still appear as they do above anyway. This is most likely because newer browsers don't even honor user-scalable=no anyway

aduth · 2022-08-02T12:34:37Z

@aduth It does look like there might be something odd going on with Android, but it's not quite what they are describing. Rather than the scaling getting wonky after returning from the acuant camera, the acuant camera itself does not fill up the screen (space on the bottom):

On Android, Acuant uses the Fullscreen API, so it's possible that our styling to try to center the canvas won't apply in the fullscreen mode. This differs from iOS where it's just painted on a full-screen DOM element, and I would expect CSS centering styles to apply normally.

It could be worth recording it somewhere to investigate further, though it seems like something which probably hasn't changed in this release, so I don't know if you'd want to let it block you from merging. You could also try testing on the older/current version to see if it behaves any differently.

eric-gade · 2022-08-02T12:53:07Z

You could also try testing on the older/current version to see if it behaves any differently.

Yes. I tested this earlier and it appears that nothing has changed. I'm going to merge.

* Initial commit of files/settings for acuant 11.7.0 sdk * Updating AcuantDocumentState to reflect new sdk changes -- What The new 11.7.0 sdk adds a property to the AcuantDocumentState called `BIG_DOCUMENT`, which is an indication that the image is too close to the document. Note also that the enum values have changed as a result. This is described in the migration doc: https://github.com/Acuant/JavascriptWebSDKV11/blob/master/docs/MigrationDetails.md changelog: Improvement, SDK, Updating Acuant SDK to 11.7.0 (LG-6785) * Adding Acuant SDK DOM Loading Tests -- What There appears to be some difference in how the 11.7 and 11.5 SDKs load the AcuantJavascriptWebSdk object into the browser's global namespace once the script tag has been loaded and `loadAcuantSdk` has been called. I wrote a s few tests that confirm the behavior I was seeing in my personal browser interactions and debugging sessions. changelog: Improvement, SDK, Updating Acuant SDK to 11.7.0 (LG-6785) * Updating Acuant components to use new globals -- What In a previous (11.5.0) version of the SDK, objects like AcuantJavascriptWebSdk and AcuantCamera were placed onto the browser's global window object. But in the new (11.7.0) SDK, they are no longer present on window -- instead, they reside alone in the global namespace via `let` declarations at the highest scope. This commit represents elementary changes to two files that reference these objects in the global namspace, rather than on window where they don't exist anymore (and were therefore erroring). The type annotations still need to be dealt with appropriately. However, the acuant sdk now loads and appears to work properly in the local manual testing environment. changelog: Improvements, SDK update, Updating the Acuant SDK * Switching acuant context file to typescript * Adding French and Spanish localizations for BIG_DOCUMENT -- What The new Acuant SDK image warning BIG_DOCUMENT, which specifies that the camera is "too close" to the document, has messages that have now been localized into French and Spanish, as well as the original English. * Updating window object checking and fixing tests -- What Because of the discrepancy between the 11.5.x and 11.7.x SDKs in how they declare globals like AcuantJavascriptWebSdk and AcuantCameraUI, I have now included a check in the acuant.jsx context file that will try to find those objects on the global window object and, if not present, simply return the result of using those variables at the global scope (which is how 11.7.x defines them). The benefit of this approach is that we don't have to rewrite or edit a bunch of the frontend tests. changelog: Improvements, Acuant SDK upgrade, dealing with variable declarations * Fixing AcuantCamera and AcuantCameraUI global checks -- What We were checking for the AcuantCamera and AcuantCameraUI objects at the wrong moment in the flow, which was causing errors when attempting to load the actual camera. This is now resolved. changelog: Improvements, SDK upgrade, fixing remaining global variable issues * Updating comment formatting and adding guards for globals -- What - Switching property and function description comments to use docblock format, which is better for VSCode users; - Adding guards to global Acuant SDK variable getter methods - Removing leftover type annotations from acuant.tsx file changelog: Improvements, Formatting, Acuant SDK upgrade comment formatting and guards * Fixing typo in localization yaml config * Update app/javascript/packages/document-capture/components/acuant-camera.jsx Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov> * Removing tests for 11.5.0 Acuant SDK loading * Excluding acuant sdk directories from code-climate checks * Removing symlinked fr dir in public folder * Fixing caught eslint errors -- Notes I have included an ignore line in acuant-camera.jsx where we refer to the global AcuantCameraUI without first declaring it. This is due to the new behavior Acuant introduced in the 11.7.0 SDK, where they are declaring variables in the global scope (but not in the window) * Updating acuant-camera to tsx and associated typescript changes -- What Several problems swirled together in the type system that necessitated refactoring the acuant-camera component to be a tsx/typescript file. First, the typechecker could not handle an undefined global AcuantCameraUI reference, and the JSDoc type annotations seem to not have a way to deal with this while plain typescript does. Second, the change to using a guard clause for trying to reason about the presence of the global variable also threw off the typechecker. In this commit we've opted for a different approach, which is to simply log the condition where neither the window nor the global namespace has a reference to the importan Acuant globals when they are needed (AcuantJavascriptWebSdk, AcuantCamera, etc). This might not be the ideal choice, but for the moment it beats fighting with the typechecker. * Adding normalized yaml localization files * Update app/javascript/packages/document-capture/components/acuant-camera.tsx Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov> * Updating definition of exports in tsx files Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov> Co-authored-by: Eric Gade <ecgade@macbook-m1.lan>

eric-gade requested review from a team and aduth July 28, 2022 16:27

aduth reviewed Jul 28, 2022

View reviewed changes

darth-cheney and others added 12 commits July 29, 2022 11:12

Initial commit of files/settings for acuant 11.7.0 sdk

81c771f

Switching acuant context file to typescript

57af928

Adding French and Spanish localizations for BIG_DOCUMENT

b287d21

-- What The new Acuant SDK image warning BIG_DOCUMENT, which specifies that the camera is "too close" to the document, has messages that have now been localized into French and Spanish, as well as the original English.

Fixing typo in localization yaml config

7d78bf2

Update app/javascript/packages/document-capture/components/acuant-cam…

4010b13

…era.jsx Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov>

Removing tests for 11.5.0 Acuant SDK loading

e559ebd

eric-gade force-pushed the eric-acuant-sdk-update branch from bd2df89 to e559ebd Compare July 29, 2022 15:13

Excluding acuant sdk directories from code-climate checks

6a67618

eric-gade force-pushed the eric-acuant-sdk-update branch from 7637e91 to 6a67618 Compare July 29, 2022 15:32

Eric Gade added 4 commits July 29, 2022 12:39

Removing symlinked fr dir in public folder

36e3ffd

Adding normalized yaml localization files

0630e0c

aduth approved these changes Aug 1, 2022

View reviewed changes

Update app/javascript/packages/document-capture/components/acuant-cam…

3764f44

…era.tsx Co-authored-by: Andrew Duthie <andrew.duthie@gsa.gov>

Updating definition of exports in tsx files

6f1f9d6

eric-gade merged commit d8c8ed8 into main Aug 2, 2022

eric-gade deleted the eric-acuant-sdk-update branch August 2, 2022 13:21

solipet mentioned this pull request Aug 9, 2022

Deploy RC 202 to Prod #6688

Merged

charleyf mentioned this pull request Mar 14, 2024

Improve Acuant Global Code Comment #10247

Merged

-    /* Possible AcuantCamera on the window object (11.5.0) */
-    AcuantCamera: AcuantCameraInterface;
-  }
-}
-interface AcuantContextProviderProps {
-  sdkSrc: string; // SDK source URL.
+    /**
+     * Possible AcuantCamera on the window object (11.5.0)
+     */
+    AcuantCamera: AcuantCameraInterface;
+  }
+}
+interface AcuantContextProviderProps {
+  /**
+   * SDK source URL.
+   */
+  sdkSrc: string;

-function AcuantContextProvider<AcuantContextProviderProps>({
-  sdkSrc = '/acuant/11.7.0/AcuantJavascriptWebSdk.min.js',
-  cameraSrc = '/acuant/11.7.0/AcuantCamera.min.js',
-  credentials = null,
-  endpoint = null,
-  glareThreshold = DEFAULT_ACCEPTABLE_GLARE_SCORE,
-  sharpnessThreshold = DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,
-  children,
-}) {
+function AcuantContextProvider({
+  sdkSrc = '/acuant/11.7.0/AcuantJavascriptWebSdk.min.js',
+  cameraSrc = '/acuant/11.7.0/AcuantCamera.min.js',
+  credentials = null,
+  endpoint = null,
+  glareThreshold = DEFAULT_ACCEPTABLE_GLARE_SCORE,
+  sharpnessThreshold = DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,
+  children,
+}: AcuantContextProviderProps) {

-  return AcuantJavascriptWebSdk;
+  if (typeof AcuantJavascriptWebSdk !== 'undefined') {
+    return AcuantJavascriptWebSdk;
+  }

-  isCameraSupported: /** @type {boolean?} */ null,
-  isActive: false,
-  setIsActive: () => {},
-  credentials: null,
-  glareThreshold: DEFAULT_ACCEPTABLE_GLARE_SCORE,
-  sharpnessThreshold: DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,
-  endpoint: /** @type {string?} */ null,
+  isCameraSupported: null as boolean | null,
+  isActive: false,
+  setIsActive: () => {},
+  credentials: null,
+  glareThreshold: DEFAULT_ACCEPTABLE_GLARE_SCORE,
+  sharpnessThreshold: DEFAULT_ACCEPTABLE_SHARPNESS_SCORE,
+  endpoint: null as string | null,

Conversation

eric-gade commented Jul 28, 2022

What

Implementation

Important Notes and Breaking Changes

window and globally scoped objects

Introduction of BIG_DOCUMENT state

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

aduth Jul 28, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

aduth Jul 28, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

eric-gade commented Jul 29, 2022

Uh oh!

aduth commented Jul 29, 2022

Uh oh!

eric-gade commented Jul 29, 2022

Uh oh!

aduth commented Aug 1, 2022

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Uh oh!

eric-gade commented Aug 1, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

aduth commented Aug 2, 2022

Uh oh!

eric-gade commented Aug 2, 2022

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

3 participants

`window` and globally scoped objects

Introduction of `BIG_DOCUMENT` state

aduth Jul 28, 2022 •

edited

Loading

aduth Jul 28, 2022 •

edited

Loading

eric-gade commented Aug 1, 2022 •

edited

Loading
