[Ingest Pipelines] Processor Editor Move Tooltip

[jloleysens]

Summary

Adds a tooltip to ingest processors editor UI to indicate which processor is being moved. See images below.

How to test

1. Start Kibana with default/basic license
2. Create the following pipeline https://gist.github.com/jloleysens/e9c92d0f26e16af2ea301fa7b6349815
3. Go to the ingest pipelines plugin in the management section. The first processor should have a description
4. Click the move button on the first processor
5. Scroll to the bottom of the list and place the processor last

Throughout these steps, when the tooltip is visible, it should stay roughly 20px below and 20px to the right of the cursor (even while scrolling).

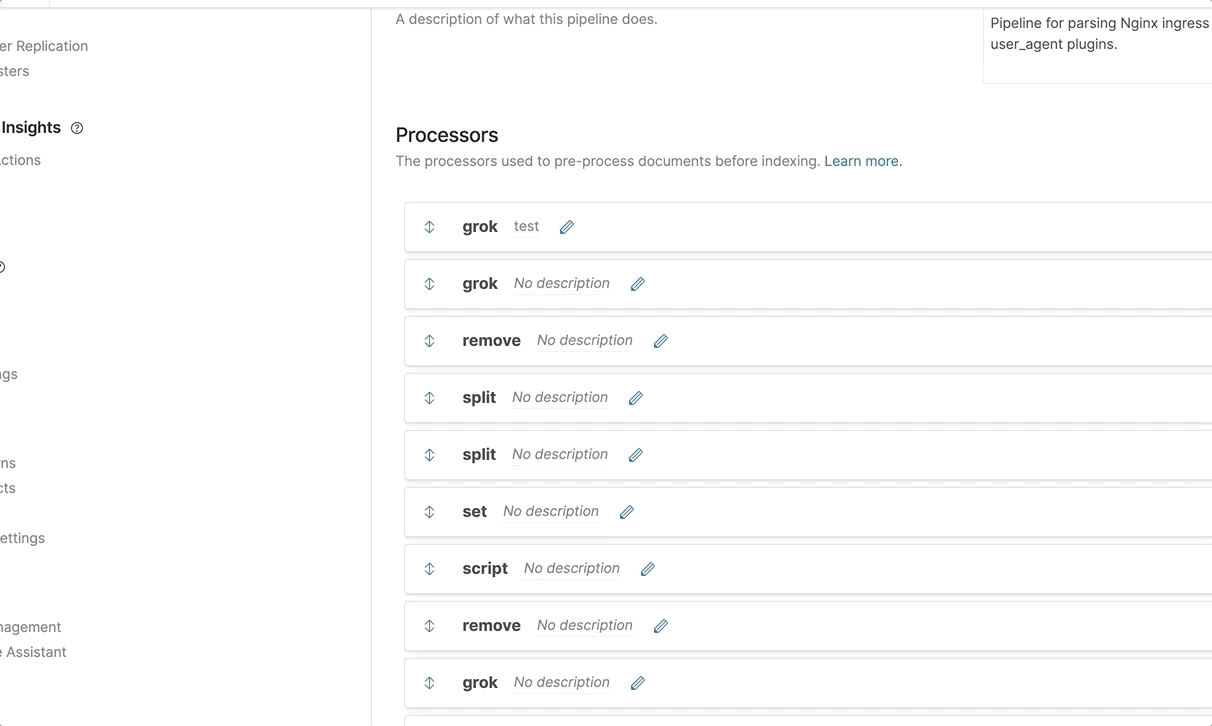

GIF

Screenshots

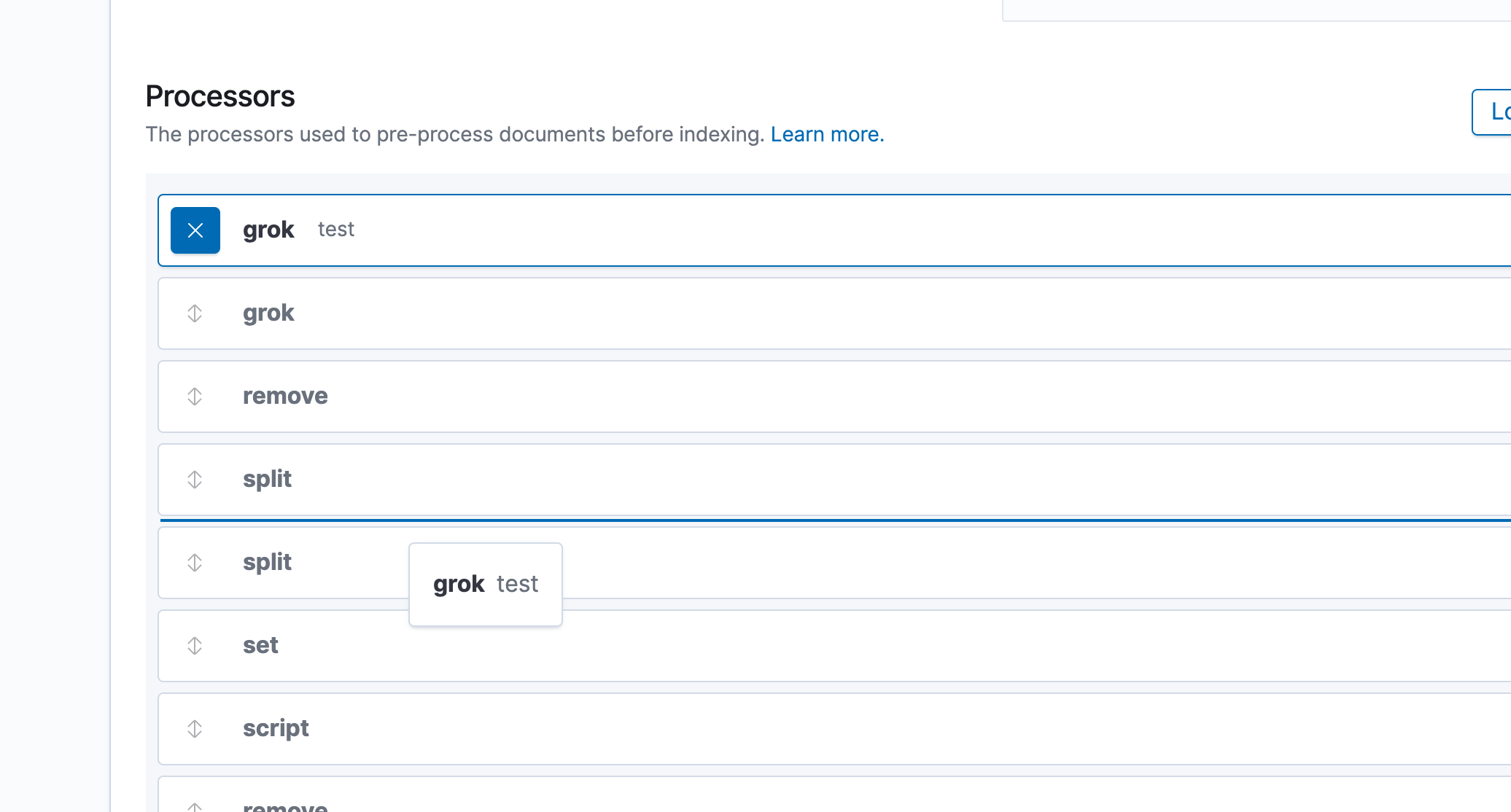

Move processor with description

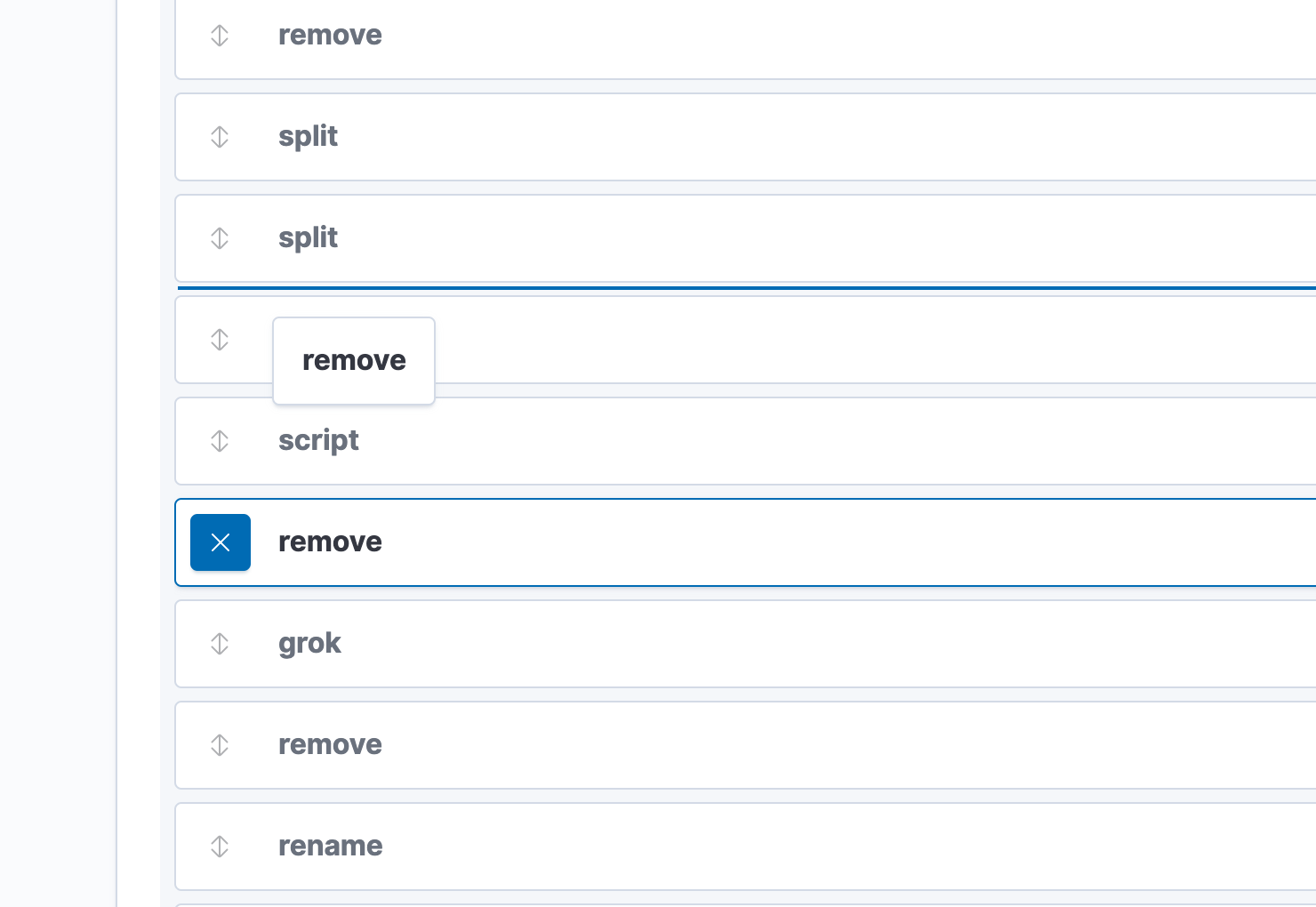

Move processor without description

Checklist

• Unit or functional tests were updated or added to match the most common scenarios
• This was checked for cross-browser compatibility

[elasticmachine]

Pinging @elastic/es-ui (Team:Elasticsearch UI)

[cjcenizal]

Nice work JL! I think this is a sweet UX enhancement. I have a few suggestions and found a couple bugs. If you'd like to address these separately I can create issues for them. Just let me know if you'd like me to do that.

Component suggestion: EuiMouseTip

I'm pretty excited by the prospect of an EuiMouseTip component! I know we already discussed this, I just wanted to get my thoughts in writing. It could have the same position prop (and positioning logic!) as EuiToolTip, so consumers can specify a position or let it dynamically reposition as the mouse nears the edges of the browser window. Then you could get rid of PipelineProcessorsItemTooltip and your ProcessorInformation implementation could be:

<EuiMouseTip position="bottom">
  {/* snip */}
</EuiMouseTip>

Component suggestion: EuiInlineEditable

Let's see if this is a pattern that EUI can adopt and evangelize. A component that makes inline editing easy would be a great way to encourage widespread adoption. Something kinda like this:

{/* This component basically just handles a focus event to show/hide `children` and manages focus-setting (possibly with some ref-passing?) */}
<EuiInlineEditable value={fieldValue}>
  <EuiFieldText value={fieldValue} onChange={/* ... */} />
</EuiInlineEditable>

UX suggestion: Moving between regular and failure processors

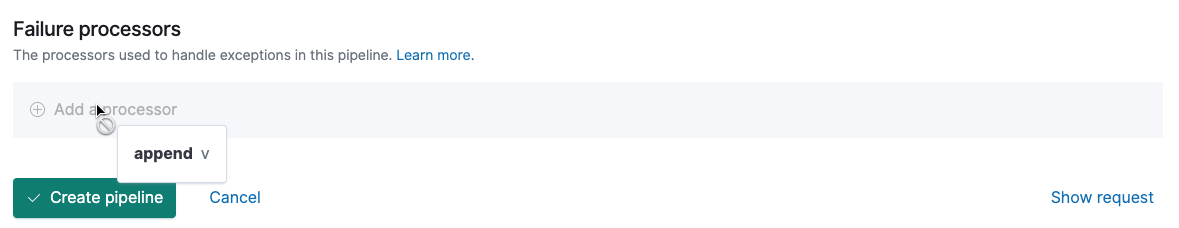

I just noticed that if there aren't any failure processors you can't move a processor into the list.

UX suggestion: "Can't move here" feedback

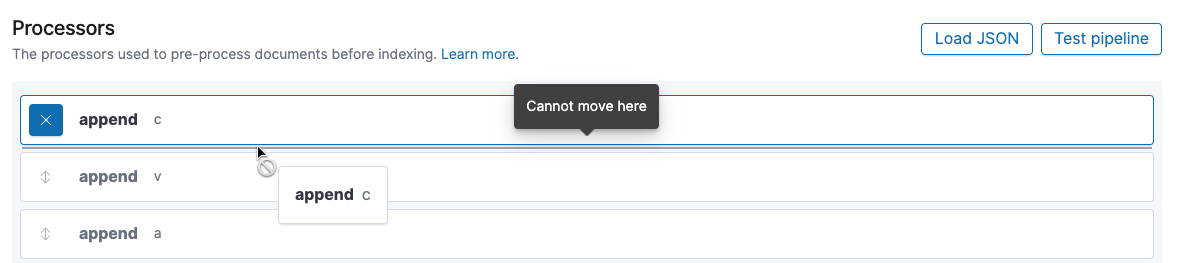

There's a lot of visual feedback in the screenshot below: a grayed-out drop indicator, a "Cannot move here" tooltip, a "Blocked" cursor, and the new processor tooltip. It's a lot to take in! Too much, I think.

I think the key to solving this "information overload" is to recognize the contradiction in showing a drop indicator (which is our way of telling the user "You can move here"), and then showing a "Cannot move here" tooltip to countermand the drop indicator. (I know the drop indicator grays out to show it's a no-op but I think this is too subtle so I'm ignoring it in this assessment). If we remove both, then I think we satisfy our goal of telling the user that they can't move the processor there. The rules are simpler to learn: if there's a drop indicator then you can move there and if there isn't then you can't.

I also suggest we remove the "Not allowed" cursor. I'm just not sure it's common enough for people to intuit it's meaning here. It seems I'm not the only one: https://ux.stackexchange.com/questions/12726/correct-cursor-for-content-cannot-be-interacted-with

Bug: Moving to top or bottom of processors list

There are two ReactVirtualized nested divs which contain the processors list. These divs have overflow: hidden set on them, which I believe is required for virtualized scrolling. However, this clips the drop zone buttons at the top and bottom of the list, which slightly degrades the UX when moving a processor to the top or bottom because the user has to acquire a smaller target and so is more likely to overshoot. It's still possible to move processors to the top/bottom, but it's just not as easy as it could be.

Setting overflow: visible on the ReactVirtualized divs solves the problem but probably causes problems with scrolling. I didn't test this though.

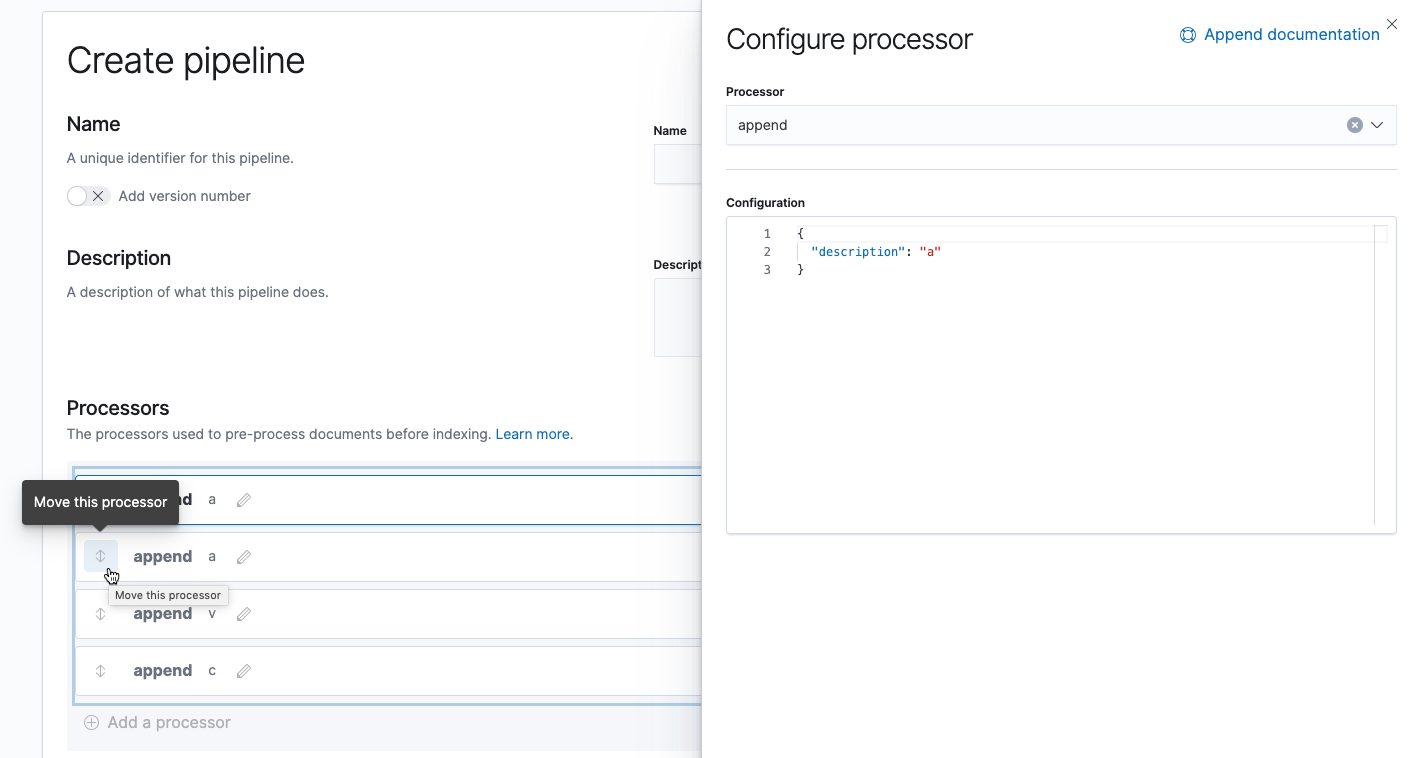

Bug: Moving while processor panel is open

When the processor panel is open, actions on each processor appear disabled but it's still possible to click the "Move" button, which closes the processor panel. It's not obvious if doing so will cancel the save the user's input in the processor panel, which is a poor UX. I suggest disabling the move button when the processor panel is open, the same as the other actions.

[jloleysens]

@elasticmachine merge upstream

[jloleysens]

Component suggestion: EuiMouseTip

👆🏻 this is something I plan on discussing with the EUI team for sure, I'll be opening an issue on their repo soon! Thanks for weighing in with your thoughts, I'll be sure to factor them in to our discussion (and ping you as needed!)

Component suggestion: EuiInlineEditable

This is something I had not thought about as much but I think certainly deserves some mention EUI-side too. This certainly merits a separate discussion/issue on EUI.

Bug: Moving to top or bottom of processors list

I'm not sure I was able to replicate this to the extent that I'd view it as a bug. That being said, with the work identified in the a11y issue (#71666) we will be swapping out react-virtualized for react-window. This might influence the behaviour you have identified - we can review it then again.

Bug: Moving while processor panel is open

Great catch! This was a particularly weird one because I was passing in disabled to EuiButtonToggle which was correctly updating the style to look disabled. But at a functional level the button was still clickable. I fixed this by using the correct EUI API isDisabled and added a test for this too.

[jloleysens]

UX suggestion: Moving between regular and failure processors

We can definitely create an issue for tracking this! It is a pre-existing issue. Would you mind opening one?

UX suggestion: "Can't move here" feedback

Thanks for sharing your insight here! I can see how the not-allowed cursor is perhaps adding unnecessary noise - removed it :)

As for the grey line and "cannot move here" tooltip; I think your point about noise is valid but only for users that are familiar with the functionality. In those cases I don't even think those users will see the "cannot move here" UI appearing because they will move over it too fast (from what I have observed). That leaves users who are new to this UI - for them I think the extra clear indication about entering "move" mode and introducing the drop zones off the bat is still valuable for discoverability.

For those reasons I'd prefer to punt on this point a little bit longer.

[kibanamachine]

💚 Build Succeeded

• continuous-integration/kibana-ci/pull-request
• Commit: b0cdee0

Build metrics

@kbn/optimizer bundle module count

id	value	diff	baseline
ingestPipelines	267	+9	258

async chunks size

id	value	diff	baseline
ingestPipelines	584.5KB	+6.9KB	577.6KB

History

• 💔 Build #62899 failed 8cfbe18
• 💚 Build #62870 succeeded 62a7766
• 💚 Build #62558 succeeded 47484b0

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

[cjcenizal]

@jloleysens I created #72568.
