Heat Map: Click to Filter breaks (6.5 and above)

[larsflagan]

**Kibana version: 6.5, 6.5.1 & 6.5.3
**Elasticsearch version: 6.5
**Server OS version: CentOS 7.5
**Browser version: Chrome 62.0.3202.94
**Browser OS version: Windows 10

Original install method (e.g. download page, yum, from source, etc.):
yum

Describe the bug:
Clicking in the a heatmap visualization to apply filter nothing happens and a javascript error is thrown

Expected behavior:
Click should apply filter

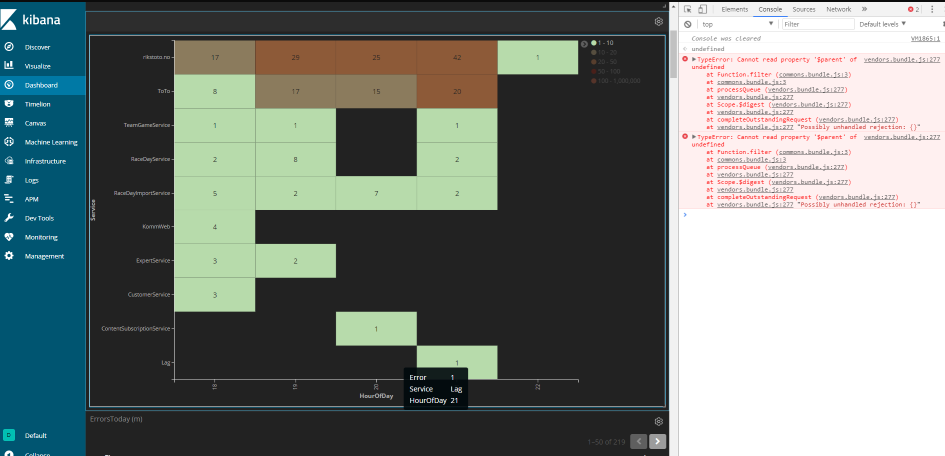

Screenshots (if relevant):

Errors in browser console (if relevant):

TypeError: Cannot read property '$parent' of undefined
at Function.filter (commons.bundle.js:3)
at commons.bundle.js:3
at processQueue (vendors.bundle.js:277)
at vendors.bundle.js:277
at Scope.$digest (vendors.bundle.js:277)
at vendors.bundle.js:277
at completeOutstandingRequest (vendors.bundle.js:277)
at vendors.bundle.js:277 "Possibly unhandled rejection: {}"

Any additional context:
Seems to be same issue as described for Pie Chart visualization in #25920, which is fixed at least in 6.5.3. But the issue iis still present for the Heatmap visualization in 6.5.3

[elasticmachine]

Pinging @elastic/kibana-app

[timroes]

cc @ppisljar could you have a look at that?

[ppisljar]

can't reproduce this on master

[larsflagan]

Tested this on 6.5.4 as well, and still the same issue.

Also noticed "malformed filter agg params, missing "query" on input - commons.bundle.js:3" on the browser console

[alexweil]

Same issue here too on 6.5

[alexweil]

@ppisljar @timroes the way to reproduce this is: create a heatmap with a split chart, a Y and a X axis. If you don't add the split chart, the heatmap works ok so I think that's the underlying issue.

[JacobBrandt]

@rayafratkina To reproduce this you need to use a histogram aggregation.

[JacobBrandt]

@rayafratkina You get the exact same problem with area/line/bar chart visualization (even in 6.5.4)
